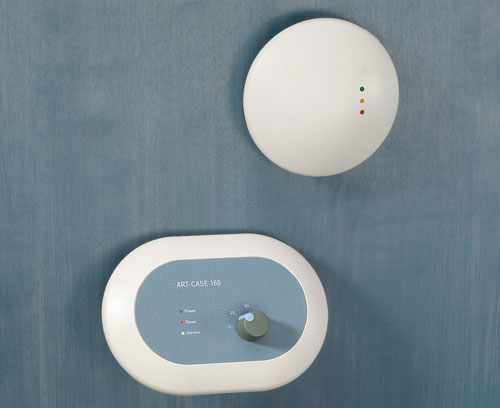

B5111307 Wall mounting set

B5111307

Wall mounting set

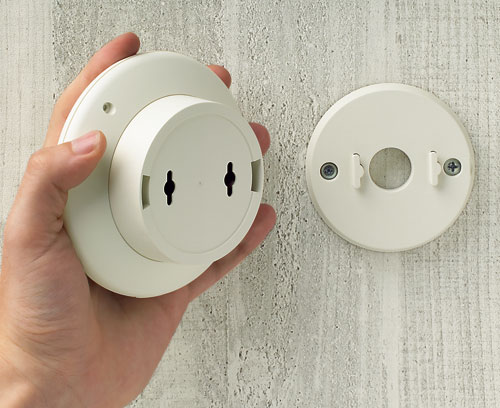

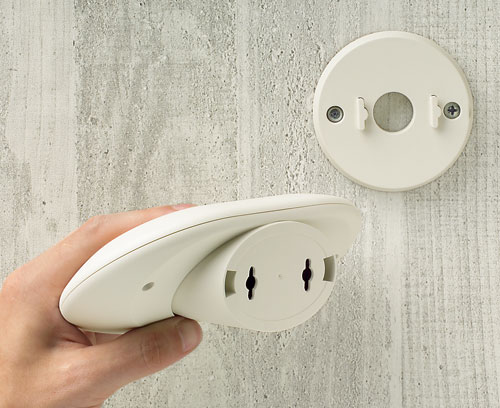

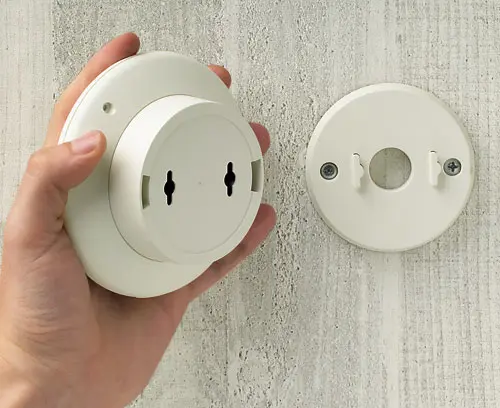

Suitable for all versions (except Euro Plug version), for secure wall mounting of the enclosures (machining lid/bases necessary).

Supply

Wall mounting set, incl. safety screw

  • To be used for
  • View Customising Options
B5010007 Bottom and top part R110 F

B5010007

Bottom and top part R110 F Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.

Version Bottom part "level"

Supply 1 top and bottom part R110 F, assembly kit

Close

B5010007

Bottom and top part R110 F
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
⌀110x30mm
B5010107 Bottom and top part R110 H

B5010107

Bottom and top part R110 H Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.

Version Bottom part "level"

Supply 1 top and bottom part R110 H, assembly kit

Close

B5010107

Bottom and top part R110 H
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
⌀110x38mm
B5010207 Bottom and top part R110 F

B5010207

Bottom and top part R110 F Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.

Version Bottom part "inclined"

Supply 1 top and bottom part R110 F, assembly kit

Close

B5010207

Bottom and top part R110 F
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
⌀110x38mm
B5010307 Bottom and top part R110 H

B5010307

Bottom and top part R110 H Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.

Version Bottom part "inclined"

Supply 1 top and bottom part R110 H, assembly kit

Close

B5010307

Bottom and top part R110 H
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
⌀110x41mm
B5011117 Base

B5011117

Base Assembly unit: suitable for all bottom parts. Spacer for ceiling / wall mounting. Easy to mount with bayonet lock. If required it can be additionally secured using the anti-rotation device (acc.). Locators for 2 x AA and strain relief (acc.) in the base.

Supply 1 base

Close

B5011117

Base
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
B5011217 Base 30°

B5011217

Base 30° Assembly unit: suitable for all "inclined" bottom parts for ergonomically installation and assembly angles. Easy to mount with bayonet lock. If required it can be additionally secured using the anti-rotation device (acc.).

Supply 1 base 30°

Close

B5011217

Base 30°
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
B5011317 Base 55°

B5011317

Base 55° Assembly unit: suitable for all "inclined" bottom parts for ergonomically installation and assembly angles. Easy to mount with bayonet lock. If required it can be additionally secured using the anti-rotation device (acc.).

Supply 1 base 55°

Close

B5011317

Base 55°
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
B5011847 Lid

B5011847

Lid Assembly unit: suitable for all bottom parts, screw-down (not suitable for use with battery compartment).

Supply 1 lid, assembly kit

Close

B5011847

Lid
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
B5011857 Battery compartment lid

B5011857

Battery compartment lid Assembly unit: suitable for all bottom parts when using battery compartment 2 x AAA (acc.), screw-down.

Supply 1 battery compartment lid, assembly kit

Close

B5011857

Battery compartment lid
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
B5012207 Bottom and top part S110F

B5012207

Bottom and top part S110F Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30°or base 55°) required for bottom part - see separate article.

Version Bottom part "inclinded"

Supply 1 top and bottom part S110 F, assembly kit

Close

B5012207

Bottom and top part S110F
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
110x110x38mm
B5015007 Bottom and top part O160 F

B5015007

Bottom and top part O160 F Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.

Version Bottom part "level"

Supply 1 top and bottom part O160 F, assembly kit

Close

B5015007

Bottom and top part O160 F
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
160x110x30mm
B5015107 Bottom and top part O160 H

B5015107

Bottom and top part O160 H Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.

Version Bottom part "level"

Supply 1 top and bottom part O160 H, assembly kit

Close

B5015107

Bottom and top part O160 H
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
160x110x38mm
B5015207 Bottom and top part O160 F

B5015207

Bottom and top part O160 F Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.

Version Bottom part "inclined"

Supply 1 top and bottom part O160 F, assembly kit

Close

B5015207

Bottom and top part O160 F
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
160x110x38mm
B5015307 Bottom and top part O160 H

B5015307

Bottom and top part O160 H Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.

Version Bottom part "inclined"

Supply 1 top and bottom part O160 H, assembly kit

Close

B5015307

Bottom and top part O160 H
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
160x110x41mm
B5017207 Bottom and top part E160 F

B5017207

Bottom and top part E160 F Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.

Version Bottom part "inclined"

Supply 1 top and bottom part E160 F, assembly kit

Close

B5017207

Bottom and top part E160 F
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
160x110x38mm

Customising options for B5111307

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Purchasing Data
Colour
off-white RAL 9002
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
18 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
