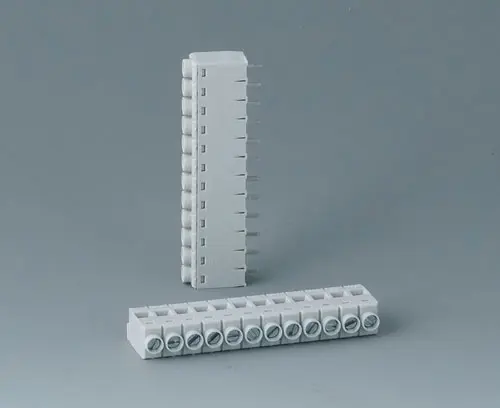

B6603111 Terminal block, block 5.0
Scroll

B6603111

Terminal block, block 5.0

PCB terminal block, 5.0. 12-pin.

Supply

1 piece

2D PDF Drawing
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for B6603111

Please select the product details you would like to include in the PDF.

Close
  • To be used for
B6503110 RAILTEC B, 4 modules, Vers. V

B6503110

RAILTEC B, 4 modules, Vers. V Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version With perforations for max. 24 terminal blocks 5.0 or 2 plug headers 12-pin

Supply 1 base part with locking clip, 1 top part

Close

B6503110

RAILTEC B, 4 modules, Vers. V
product added to your basket
PC (UL 94 V-0)
light grey RAL 7035
70x86x58mm

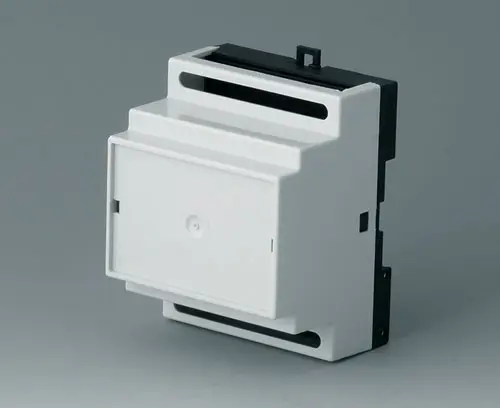

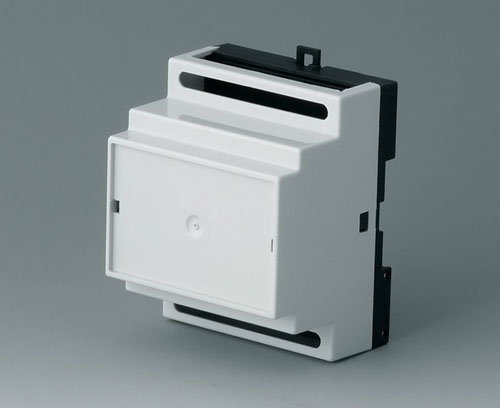

B6503111 RAILTEC B, 4 modules, Vers. I

B6503111

RAILTEC B, 4 modules, Vers. I Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (24 terminals max.)

Supply 1 base part with locking clip, 1 top part

Close

B6503111

RAILTEC B, 4 modules, Vers. I
product added to your basket
PC (UL 94 V-0)
light grey RAL 7035
70x86x58mm

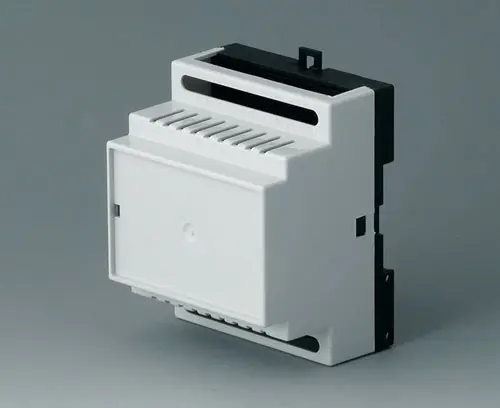

B6503114 RAILTEC B, 4 modules, Vers. I

B6503114

RAILTEC B, 4 modules, Vers. I Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (24 terminals max.)

Supply 1 base part with locking clip, 1 top part

Close

B6503114

RAILTEC B, 4 modules, Vers. I
product added to your basket
PC (UL 94 V-0)
light grey RAL 7035
70x86x58mm

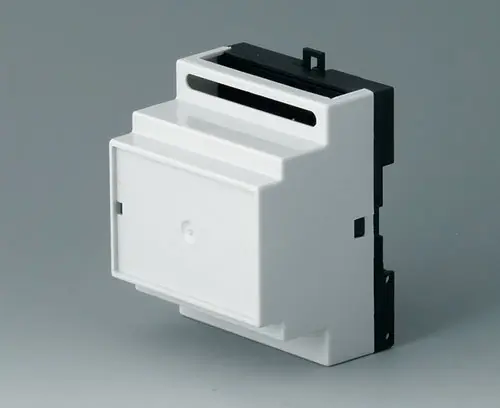

B6503117 RAILTEC B, 4 modules, Vers. IV

B6503117

RAILTEC B, 4 modules, Vers. IV Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH 5. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (12 terminals max., only on bottom)

Supply 1 base part with locking clip, 1 top part

Close

B6503117

RAILTEC B, 4 modules, Vers. IV
product added to your basket
PC (UL 94 V-0)
light grey RAL 7035
70x86x58mm

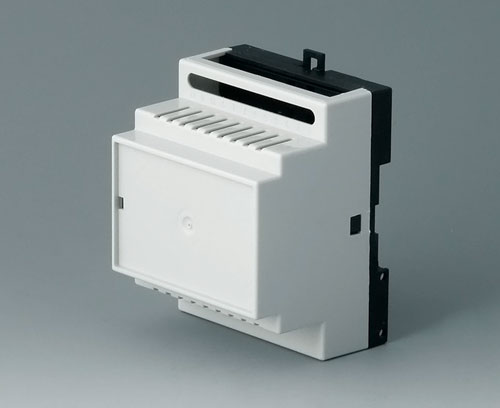

B6503118 RAILTEC B, 4 modules, Vers. IV

B6503118

RAILTEC B, 4 modules, Vers. IV Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (12 terminals max., only on bottom)

Supply 1 base part with locking clip, 1 top part

Close

B6503118

RAILTEC B, 4 modules, Vers. IV
product added to your basket
PC (UL 94 V-0)
light grey RAL 7035
70x86x58mm
B6503119 RAILTEC B, 4 modules, Vers. V

B6503119

RAILTEC B, 4 modules, Vers. V Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version With perforations for max. 24 terminal blocks 5.0 or 2 plug headers 12-pin

Supply 1 base part with locking clip, 1 top part

Close

B6503119

RAILTEC B, 4 modules, Vers. V
product added to your basket
PC (UL 94 V-0)
light grey RAL 7035
70x86x58mm

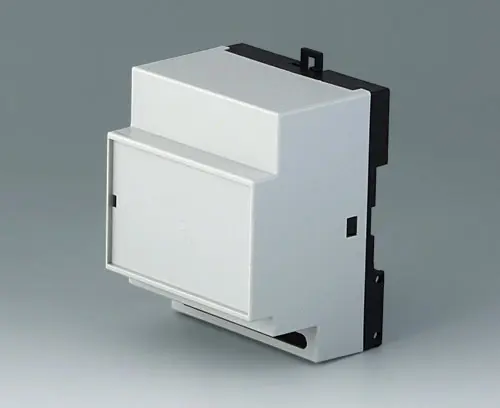

B6513111 RAILTEC B, 4 modules, Vers. XI

B6513111

RAILTEC B, 4 modules, Vers. XI Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing pillars for the PCB. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (12 terminals max.)

Supply 1 base part with locking clip, 1 top part

Close

B6513111

RAILTEC B, 4 modules, Vers. XI
product added to your basket
PC (UL 94 V-0)
light grey RAL 7035
70x86x58mm
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
PA 68 (UL 94 V-0)
Standards
RoHS compliant
REACH compliant
Pitch
5.0 mm
Poles
12
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
13 g
Customs tariff number
(OKW product)
85369095
Country of manufacture
U.K.
