B6604111 Terminal block, block 5.0

B6604111

Terminal block, block 5.0

PCB terminal block, 5.0. 18-pin.

Supply

1 piece

  • To be used for
B6504110 RAILTEC B, 6 modules, Vers. V

B6504110

RAILTEC B, 6 modules, Vers. V Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version With perforations for max. 36 terminal blocks 5.0 or 2 plug headers 18-pin

Supply 1 base part with locking clip, 1 top part

Close

B6504110

RAILTEC B, 6 modules, Vers. V
product added to your basket
PC (UL 94 V-0)
light grey RAL 7035
105x86x59mm

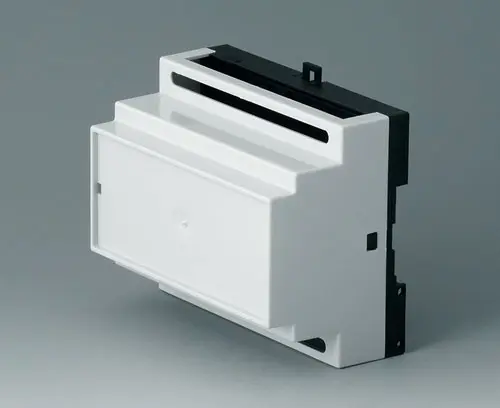

B6504111 RAILTEC B, 6 modules, Vers. I

B6504111

RAILTEC B, 6 modules, Vers. I Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (36 terminals max.)

Supply 1 base part with locking clip, 1 top part

Close

B6504111

RAILTEC B, 6 modules, Vers. I
product added to your basket
PC (UL 94 V-0)
light grey RAL 7035
105x86x59mm
B6504114 RAILTEC B, 6 modules, Vers. I

B6504114

RAILTEC B, 6 modules, Vers. I Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (36 terminals max.)

Supply 1 base part with locking clip, 1 top part

Close

B6504114

RAILTEC B, 6 modules, Vers. I
product added to your basket
PC (UL 94 V-0)
light grey RAL 7035
105x86x59mm

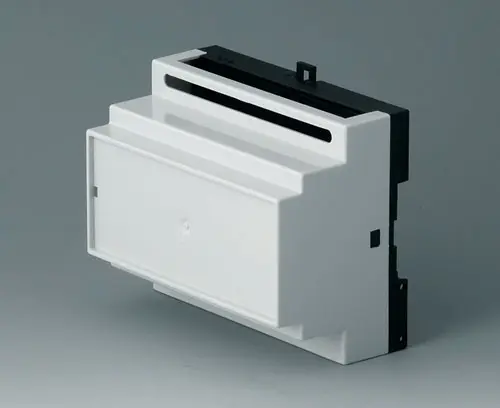

B6504117 RAILTEC B, 6 modules, Vers. IV

B6504117

RAILTEC B, 6 modules, Vers. IV Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (18 terminals max., only on bottom)

Supply 1 base part with locking clip, 1 top part

Close

B6504117

RAILTEC B, 6 modules, Vers. IV
product added to your basket
PC (UL 94 V-0)
light grey RAL 7035
105x86x59mm

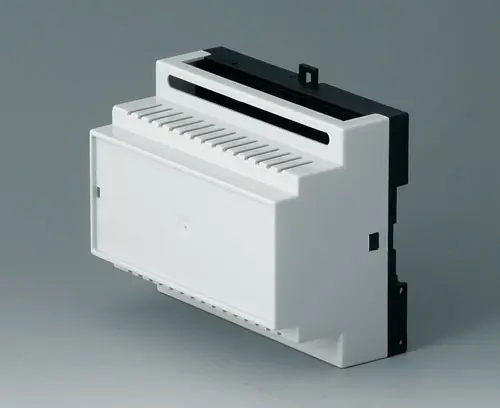

B6504118 RAILTEC B, 6 modules, Vers. IV

B6504118

RAILTEC B, 6 modules, Vers. IV Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (18 terminals max., only on bottom)

Supply 1 base part with locking clip, 1 top part

Close

B6504118

RAILTEC B, 6 modules, Vers. IV
product added to your basket
PC (UL 94 V-0)
light grey RAL 7035
105x86x59mm
B6504119 RAILTEC B, 6 modules, Vers. V

B6504119

RAILTEC B, 6 modules, Vers. V Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version With perforations for max. 36 terminal blocks 5.0 or 2 plug headers 18-pin

Supply 1 base part with locking clip, 1 top part

Close

B6504119

RAILTEC B, 6 modules, Vers. V
product added to your basket
PC (UL 94 V-0)
light grey RAL 7035
105x86x59mm

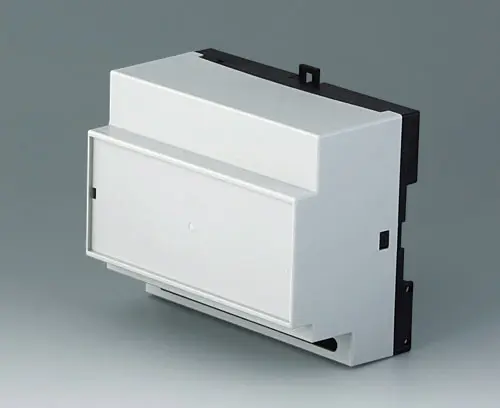

B6514111 RAILTEC B, 6 modules, Vers. XI

B6514111

RAILTEC B, 6 modules, Vers. XI Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing pillars for the PCB. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (18 terminals max.)

Supply 1 base part with locking clip, 1 top part

Close

B6514111

RAILTEC B, 6 modules, Vers. XI
product added to your basket
PC (UL 94 V-0)
light grey RAL 7035
105x86x59mm
  • Technical Data
  • Drawings / Info
  • Purchasing Data
Pitch
5.0 mm
Poles
18
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
20 g
Customs tariff number
(OKW product)
85369095
Country of manufacture
Romania
