A9005108 DATEC-COMPACT S
Scroll

A9005108

DATEC-COMPACT S

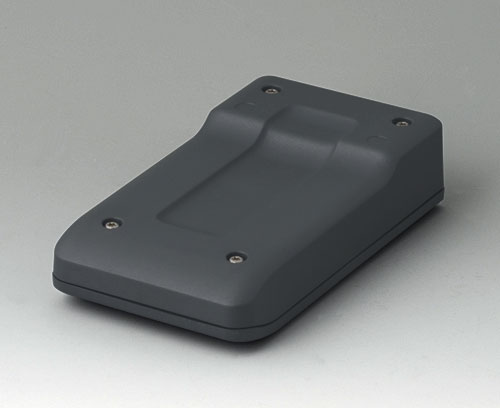

2-part compact hand-held enclosure with sealing and with an ergonomic, robust design. Secure grip through finger recess in the bottom part. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version

Without battery compartment

Supply

Top and bottom part, assembly kit

2D PDF Drawing
3D PDF View
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for A9005108

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories
  • View Customising Options

Accessory "station"

A9105508 Station S

A9105508

Station S Base for the practical storage of DATEC-COMPACT S, with and without battery compartment. Ideal for charging mobile devices and transmitting data. Domes for mounting PCBs and components. Recesses for spring contacts (accessories).

Supply Station with bottom panel, rubber feet, assembly kit

Close

A9105508

Station S
product added to your basket
ASA+PC (UL 94 V-0)
lava
A9193031 Spring contact

A9193031

Spring contact Spring contact, round with ballpoint tip and collar for transmitting charging current. Drilled hole necessary, then self-locking. Further contact established by means of a soldered stranded wire on the fixed outer surface or PCB mounting. Load-carrying capacity up to 15 A. 1.5 mm stroke, 1,7 N. Extremely low contact resistance.

Supply 1 spring contact

Close

A9193031

Spring contact
product added to your basket
gold-plated

Accessory "wall/holder"

A9105628 Holder S

A9105628

Holder S Special holder for DATEC-COMPACT S for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.

Supply 1 holder

Close

A9105628

Holder S
product added to your basket
ASA+PC (UL 94 V-0)
lava

Accessory "screws"

A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
product added to your basket
A0325060 Self-tapping screw 2.5 x 6 mm (T8)

A0325060

Self-tapping screw 2.5 x 6 mm (T8) Self-tapping screw with T8 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0325060

Self-tapping screw 2.5 x 6 mm (T8)
product added to your basket
Stainless steel
A0399T08 Torx T8 screwdriver

A0399T08

Torx T8 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T8 type screws. (original can deviate from photo)

Supply 1 screwdriver

Close

A0399T08

Torx T8 screwdriver
product added to your basket
A0399T10 Torx T10 screwdriver

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

Close

A0399T10

Torx T10 screwdriver
product added to your basket

Accessory

A9193030 Contact pin

A9193030

Contact pin Contact pin, round with flat flange for transmitting charging current. Stepped bore necessary, then self-locking. Further contact established by means of a soldered stranded wire in the internal drilled hole. Load-carrying capacity up to 15 A. Extremely low contact resistance.

Supply 1 contact pin

Close

A9193030

Contact pin
product added to your basket
gold-plated
A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Close

A9207150

Anti-slide feet 6.5 x 2 mm
product added to your basket
transparent

Customising options for A9005108

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info

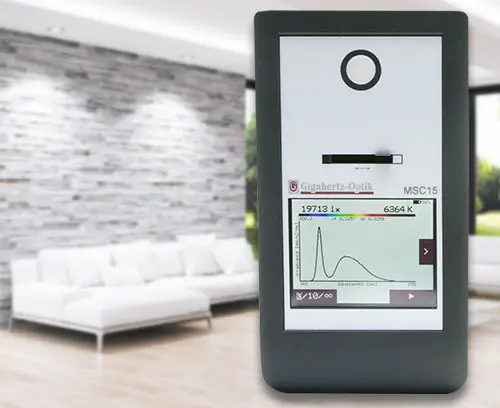

  • Application Examples
  • Purchasing Data
Material
ASA+PC (UL 94 V-0)
Protection class
IP 65
Colour
lava
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
136 mm
Width
74 mm
Height
32 mm
PCB length, base
97 mm
PCB width, base
65 mm
PCB length, top
99 mm
PCB width, top
65 mm
Keypad length
102.6 mm
Keypad width
55.5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
75 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
