A0324270 Front / rear panel 42 TE 2 HE

A0324270

Front / rear panel 42 TE 2 HE

Front/rear panel for case 42 TE 2 HE.

Supply

1 front panel

  • To be used for
  • View Customising Options
A0110270 Side panel 1 HE

A0110270

Side panel 1 HE Side panel 1 HE for enlarging the height. For combination with case shell (safely locks with each other by pressure).

Supply 1 side panel

Close

A0110270

Side panel 1 HE
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
250x44.45mm
A0110280 Side panel 1 HE

A0110280

Side panel 1 HE Side panel 1 HE for enlarging the height. For combination with case shell (safely locks with each other by pressure).

Supply 1 side panel

Close

A0110280

Side panel 1 HE
product added to your basket
ABS (UL 94 HB)
pebble grey RAL 7032
250x44.45mm
A0111270 Side panel 1 HE, for handle mounting

A0111270

Side panel 1 HE, for handle mounting Side panel 1 HE with hole for handle for enlarging the height. For combination with case shell (safely locks with each other by pressure).

Supply 1 side panel

Close

A0111270

Side panel 1 HE, for handle mounting
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
250x44.45mm
A0111280 Side panel 1 HE, for handle mounting

A0111280

Side panel 1 HE, for handle mounting Side panel 1 HE with hole for handle for enlarging the height. For combination with case shell (safely locks with each other by pressure).

Supply 1 side panel

Close

A0111280

Side panel 1 HE, for handle mounting
product added to your basket
ABS (UL 94 HB)
pebble grey RAL 7032
250x44.45mm
A0114170 Shell 42 TE

A0114170

Shell 42 TE The case shells (2 pcs necessary) safely lock with each other by pressure. With injection-moulded fixing towers for PCB mounting. For combination with side panel and snap-in panel (separate article).

Supply 1 shell

Close

A0114170

Shell 42 TE
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
260x250x27mm
A0114370 Snap-in panel, without slots

A0114370

Snap-in panel, without slots Snap-in panel without slots for the top. For locking in the case shells.

Supply 1 snap-in panel without slots

Close

A0114370

Snap-in panel, without slots
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
A0124370 Snap-in panel, with slots

A0124370

Snap-in panel, with slots Snap-in panel with slots for the top. For locking in the case shells.

Supply 1 snap-in panel with slots

Close

A0124370

Snap-in panel, with slots
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
A0134370 Snap-in panel, without slots, with feet

A0134370

Snap-in panel, without slots, with feet Snap-in panel without slots, with feet for the bottom. For locking in the case shells.For combination with tilt feet (see accessory).

Supply 1 snap-in panel without slots, with feet

Close

A0134370

Snap-in panel, without slots, with feet
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
A0144370 Snap-in panel with, slots, with feet

A0144370

Snap-in panel with, slots, with feet Snap-in panel with slots, with feet for the bottom. For locking in the case shells. For combination with tilt feet (see accessory).

Supply 1 snap-in panel with slots

Close

A0144370

Snap-in panel with, slots, with feet
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002

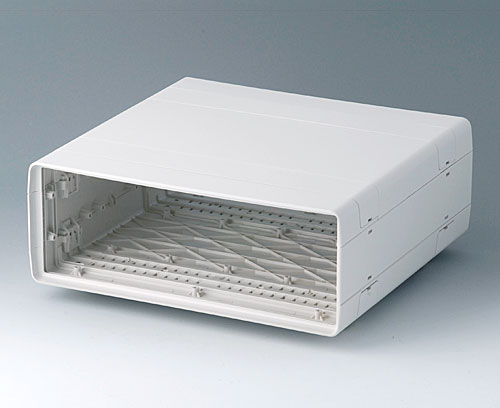

A0224070 EURO CASE 42 TE, without handle

A0224070

EURO CASE 42 TE, without handle Modular construction without screws. Fixing support in the shells and side panels.

Supply 2 shells, 2 side panels 1 HE, 2 snap-in panels without slots, 2 snap-in panels without slots, with feet

Close

A0224070

EURO CASE 42 TE, without handle
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
260x250x98.5mm
A0224170 EURO CASE 42 TE, without handle

A0224170

EURO CASE 42 TE, without handle Modular construction without screws. Fixing support in the shells and side panels.

Supply 2 shells, 2 side panels 1 HE, 1 snap-in panel without/with slots each, 1 snap-in panel without/with slots, with feet each

Close

A0224170

EURO CASE 42 TE, without handle
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
260x250x98.5mm
A0224270 EURO CASE 42 TE, without handle

A0224270

EURO CASE 42 TE, without handle Modular construction without screws. Fixing support in the shells and side panels.

Supply 2 shells, 2 side panels 1 HE, 2 snap-in panels with slots, 2 snap-in panels with slots, with feet

Close

A0224270

EURO CASE 42 TE, without handle
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
260x250x98.5mm

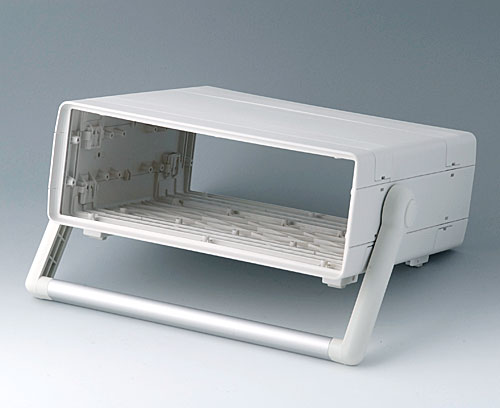

A0224470 EURO CASE 42 TE, with handle

A0224470

EURO CASE 42 TE, with handle Modular construction without screws with handle. Fixing support in the shells and side panels.

Supply 2 shells, 2 side panels 1 HE with hole, 2 snap-in panels without slots, 2 snap-in panels without slots, with feet, 1 handle

Close

A0224470

EURO CASE 42 TE, with handle
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
260x250x98.5mm
A0224570 EURO CASE 42 TE, with handle

A0224570

EURO CASE 42 TE, with handle Modular construction without screws with handle. Fixing support in the shells and side panel.

Supply 2 shells, 2 side panels 1 HE with hole, 1 snap-in panel without/with slots each, 1 snap-in panel without/with slots, with feet each, 1 handle

Close

A0224570

EURO CASE 42 TE, with handle
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
260x250x98.5mm
A0224670 EURO CASE 42 TE, with handle

A0224670

EURO CASE 42 TE, with handle Modular construction without screws with handle. Fixing support in the shells and side panels.

Supply 2 shells, 2 side panels 1 HE with hole, 2 snap-in panels with slots, 2 snap-in panels with slots, with feet, 1 handle

Close

A0224670

EURO CASE 42 TE, with handle
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
260x250x98.5mm
A0344216 Handle 42 TE

A0344216

Handle 42 TE For canting and carrying the unit. Strong ratchet with 30° indexing. Side arms off-white RAL 9002 / push buttons pepple grey RAL 7032. For combination with side panel with hole for handle.

Supply 2 side arms, 1 aluminium section, 2 fastenings screws

Close

A0344216

Handle 42 TE
product added to your basket
PA 6
off-white RAL 9002
A0344217 Handle 42 TE

A0344217

Handle 42 TE For canting and carrying the unit. Strong ratchet with 30° indexing. Side arms off-white RAL 9002 / push buttons off white RAL 9002. For combination with side panel with hole for handle.

Supply 2 side arms, 1 aluminium section, 2 fastenings screws

Close

A0344217

Handle 42 TE
product added to your basket
PA 6
off-white RAL 9002
A0344218 Handle 42 TE

A0344218

Handle 42 TE For canting and carrying the unit. Strong ratchet with 30° indexing. Side arms pepple grey RAL 7032 / push buttons off-white RAL 9002. For combination with side panel with hole for handle.

Supply 2 side arms, 1 aluminium section, 2 fastenings screws

Close

A0344218

Handle 42 TE
product added to your basket
PA 6
pebble grey RAL 7032

Customising options for A0324270

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Colour
matt anodised
Width
250.8 mm
Height
90.7 mm
Thickness
2 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
121 g
Customs tariff number
(OKW product)
76069200
Country of manufacture
Germany
