C7116056 Mounting plate

C7116056

Mounting plate

Mounting plate made of insulating material with 4 holes drilled in it, for attachment in the bottom part of the enclosure.

Supply

1 mounting plate

  • Components/Accessories
  • View Customising Options

System components to complete

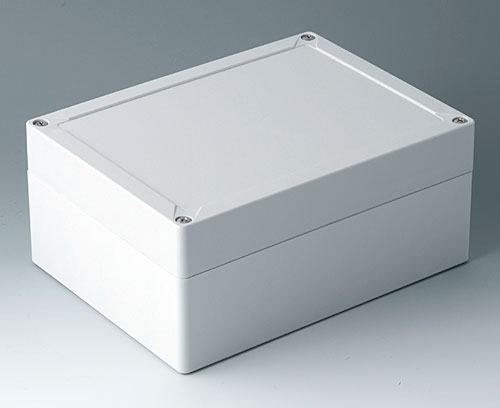

C7021071 IN-BOX

C7021071

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

Close

C7021071

IN-BOX
product added to your basket
ABS (UL 94 HB)
light grey RAL 7035
202x152x90mm
IP 66, IP 67, IK 07
C7021072 IN-BOX

C7021072

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

Close

C7021072

IN-BOX
product added to your basket
PC
light grey RAL 7035
202x152x90mm
IP 66, IP 67, IK 08
C7021074 IN-BOX

C7021074

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

Close

C7021074

IN-BOX
product added to your basket
ABS/PC (UL 94 HB)
light grey RAL 7035
202x152x90mm
IP 66, IP 67, IK 07
C7021075 IN-BOX

C7021075

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

Close

C7021075

IN-BOX
product added to your basket
PC
light grey RAL 7035
202x152x90mm
IP 66, IP 67, IK 08

Accessory "screws"

C7100167 Screw 3.9 x 9 mm

C7100167

Screw 3.9 x 9 mm For fitting standard DIN rails, mounting plates, PCBs, components etc.

Supply 1 self-tapping screw

Close

C7100167

Screw 3.9 x 9 mm
product added to your basket

Customising options for C7116056

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Purchasing Data
Length
171 mm
Width
143 mm
Thickness
2.5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
96 g
Customs tariff number
(OKW product)
39219090
Country of manufacture
Germany
