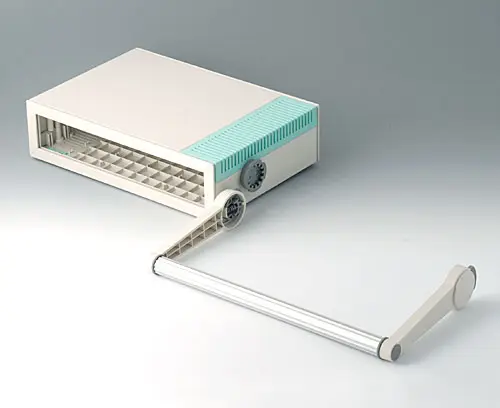

B2129507 Handle bar D

B2129507

Handle bar D

For canting and carrying the unit. To be assembled from the outside. Strong ratchet with 30° indexing. For combination with side panel with hole for handle.

Supply

2 side arms, 1 Al-profile, antislipping device, lid, assembly kit

  • Components/Accessories
  • View Customising Options

System components to complete

B2010007 L-shells D 220, without holes

B2010007

L-shells D 220, without holes Component as separate parts: L-shells without hole. Ideal for the installation of double-Eurocards 233.4 x 220 mm. Side trims 220 (sep. article) necessary for covering the screw fixing.

Supply 2 L-shells, incl. assembly kit, 4 case feet

Close

B2010007

L-shells D 220, without holes
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
290x260x74mm
B2010107 L-shells D 220, with holes for handle

B2010107

L-shells D 220, with holes for handle Component as separate parts: L-shells with hole for handle. Ideal for the installation of double-Eurocards 233.4 x 220 mm. Side trims 220 (sep. article) necessary for covering the screw fixing.

Supply 2 L-shells, incl. assembly kit, 4 case feet

Close

B2010107

L-shells D 220, with holes for handle
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
290x260x74mm
B2011007 L-shells D 160, without holes

B2011007

L-shells D 160, without holes Component as separate parts: L-shells without hole. Ideal for the installation of double-Eurocards 233.4 x 160 mm. Side trims 160 (sep. article) necessary for covering the screw fixing.

Supply 2 L-shells, incl. assembly kit, 4 case feet

Close

B2011007

L-shells D 160, without holes
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
290x200x74mm
B2011107 L-shells D 160, with holes for handle

B2011107

L-shells D 160, with holes for handle Component as separate parts: L-shells with hole for handle. Ideal for the installation of double-Eurocards 233.4 x 160 mm. Side trims 160 (sep. article) necessary for covering the screw fixing.

Supply 2 L-shells, incl. assembly kit, 4 case feet

Close

B2011107

L-shells D 160, with holes for handle
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
290x200x74mm
B2020005 Side trims 220, without ventilation

B2020005

Side trims 220, without ventilation Side trims without ventilation. The trims will be slided laterally onto the L-shells and are self-locking.

Supply 2 side trims

Close

B2020005

Side trims 220, without ventilation
product added to your basket
ABS
lagoon
B2020007 Side trims 220, without ventilation

B2020007

Side trims 220, without ventilation Side trims without ventilation. The trims will be slided laterally onto the L-shells and are self-locking.

Supply 2 side trims

Close

B2020007

Side trims 220, without ventilation
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
B2021005 Side trims 220, with ventilation

B2021005

Side trims 220, with ventilation Side trims with ventilation. The trims will be slided laterally onto the L-shells and are self-locking.

Supply 2 side trims

Close

B2021005

Side trims 220, with ventilation
product added to your basket
ABS
lagoon
B2021007 Side trims 220, with ventilation

B2021007

Side trims 220, with ventilation Side trims with ventilation. The trims will be slided laterally onto the L-shells and are self-locking.

Supply 2 side trims

Close

B2021007

Side trims 220, with ventilation
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
B2022005 Side trims 160, without ventilation

B2022005

Side trims 160, without ventilation Side trims without ventilation. The trims will be slided laterally onto the L-shells and are self-locking.

Supply 2 side trims

Close

B2022005

Side trims 160, without ventilation
product added to your basket
ABS
lagoon
B2022007 Side trims 160, without ventilation

B2022007

Side trims 160, without ventilation Side trims without ventilation. The trims will be slided laterally onto the L-Shells and are self-locking.

Supply 2 side trims

Close

B2022007

Side trims 160, without ventilation
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
B2023005 Side trims 160, with ventilation

B2023005

Side trims 160, with ventilation Side trims with ventilation. The trims will be slided laterally onto the L-Shells and are self-locking.

Supply 2 side trims

Close

B2023005

Side trims 160, with ventilation
product added to your basket
ABS
lagoon
B2023007 Side trims 160, with ventilation

B2023007

Side trims 160, with ventilation Side trims with ventilation. The trims will be slided laterally onto the L-Shells and are self-locking.

Supply 2 side trims

Close

B2023007

Side trims 160, with ventilation
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
B2030107 Side panels 220, with holes for handle

B2030107

Side panels 220, with holes for handle Side panels with hole for 50 mm additional height. Suitable for Meditec D220/E220.

Supply 2 side panels, set of screws

Close

B2030107

Side panels 220, with holes for handle
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
B2031107 Side panels 160, with holes for handle

B2031107

Side panels 160, with holes for handle Side panels with hole for 50 mm additional height. Suitable for Meditec D160/E160.

Supply 2 side panel, set of screws

Close

B2031107

Side panels 160, with holes for handle
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
B2210005 MEDITEC D 220, without handle bar

B2210005

MEDITEC D 220, without handle bar Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply 2 L-Shells, 2 side trims with ventilation (colour lagoon), assembly kit, 4 case-feet

Close

B2210005

MEDITEC D 220, without handle bar
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
290x260x74mm
IP 40
B2210007 MEDITEC D 220, without handle bar

B2210007

MEDITEC D 220, without handle bar Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply 2 L-Shells, 2 side trims with ventilation (colour off-white), assembly kit, 4 case-feet

Close

B2210007

MEDITEC D 220, without handle bar
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
290x260x74mm
IP 40
B2210015 MEDITEC D 220, without handle bar

B2210015

MEDITEC D 220, without handle bar Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply 2 L-Shells, 2 side trims without ventilation (colour lagoon), assembly kit, 4 case-feet

Close

B2210015

MEDITEC D 220, without handle bar
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
290x260x74mm
IP 40
B2210017 MEDITEC D 220, without handle bar

B2210017

MEDITEC D 220, without handle bar Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 220 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply 2 L-Shells, 2 side trims without ventilation (colour off-white), assembly kit, 4 case-feet

Close

B2210017

MEDITEC D 220, without handle bar
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
290x260x74mm
IP 40
B2211005 MEDITEC D 160, without handle bar

B2211005

MEDITEC D 160, without handle bar Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply 2 L-Shells, 2 side trims with ventilation (colour lagoon), assembly kit, 4 case-feet

Close

B2211005

MEDITEC D 160, without handle bar
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
290x200x74mm
IP 40
B2211007 MEDITEC D 160, without handle bar

B2211007

MEDITEC D 160, without handle bar Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply 2 L-Shells, 2 side trims with ventilation (colour off-white), assembly kit, 4 case-feet

Close

B2211007

MEDITEC D 160, without handle bar
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
290x200x74mm
IP 40
B2211015 MEDITEC D 160, without handle bar

B2211015

MEDITEC D 160, without handle bar Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply 2 L-Shells, 2 side trims without ventilation (colour lagoon), assembly kit, 4 case-feet

Close

B2211015

MEDITEC D 160, without handle bar
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
290x200x74mm
IP 40
B2211017 MEDITEC D 160, without handle bar

B2211017

MEDITEC D 160, without handle bar Complete case. Ideally suited to accommodate double-Eurocards 233.4 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply 2 L-Shells, 2 side trims without ventilation (colour off-white), assembly kit, 4 case-feet

Close

B2211017

MEDITEC D 160, without handle bar
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
290x200x74mm
IP 40

Accessory to complete

B2129007 Sloping control panel D

B2129007

Sloping control panel D Ergonomically sloped operation front. 2-part construction for easy access of components. Recessed area for membrane keyboards. Reading angle wall: 60°, desk top 30°.

Version D (for MEDITEC D160 or D220)

Supply 1 angle, 1 cover, assembly kit

Close

B2129007

Sloping control panel D
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
B2129307 Front / rear panel D, flat

B2129307

Front / rear panel D, flat For case without side panels.

Supply 1 front panel

Close

B2129307

Front / rear panel D, flat
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
271.6x55.6x3mm
B2129407 Front / rear panel Z1

B2129407

Front / rear panel Z1 For cases with 1 side panel per side.

Supply 1 front panel Z1

Close

B2129407

Front / rear panel Z1
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
271.6x105.6x3mm
B2129707 Infill panel D

B2129707

Infill panel D When using the MEDITEC-cases with 1 intermediate part each right and left hand (case height = 124 mm) and operating front. The front cover locks the access to the case's inside; usable on top of or under the operaring front alternatively.

Version D

Supply 1 front cover (for locking)

Close

B2129707

Infill panel D
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
272x55x5mm

Accessory "screws"

A9199008 Set of screws

A9199008

Set of screws Screw kit for mounting PCBs. Diameter 2.5 x 6 mm, type PZ1.

Supply 4 screws

Close

A9199008

Set of screws
product added to your basket

Accessory

B2134012 Stacking elements

B2134012

Stacking elements Stacking elements for secure sandwiching several devices. Screwless fixing in pre-shaped receivers.

Supply 4 stacking elements

Close

B2134012

Stacking elements
product added to your basket
PA 6
volcano

Customising options for B2129507

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Colour
Side arms off-white RAL 9002,
Push button handle volcano,
Profile handle matt anodised
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Part)

Weight/1 part
225 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
