DATEC-MOBIL-BOX
Scroll

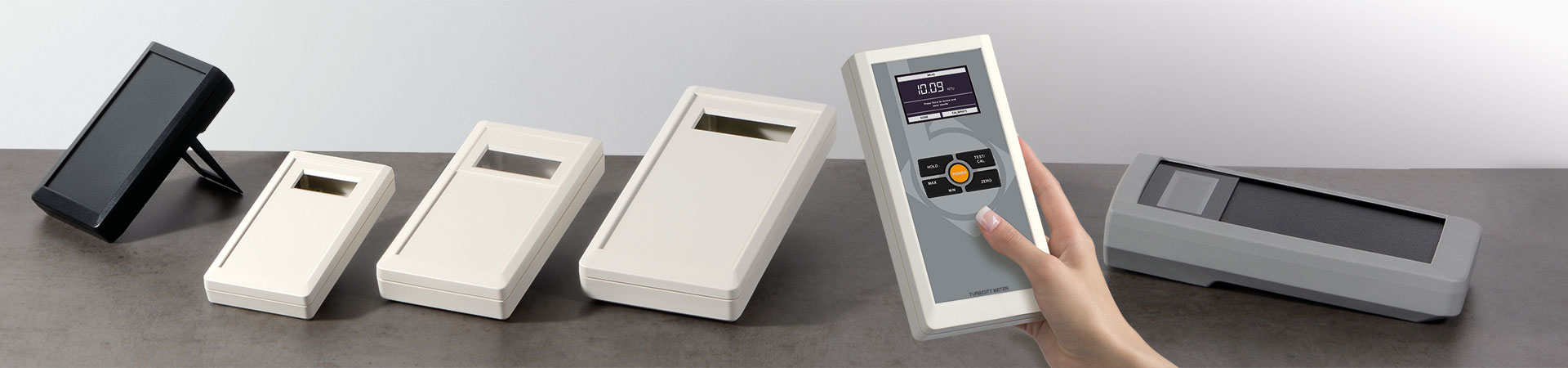

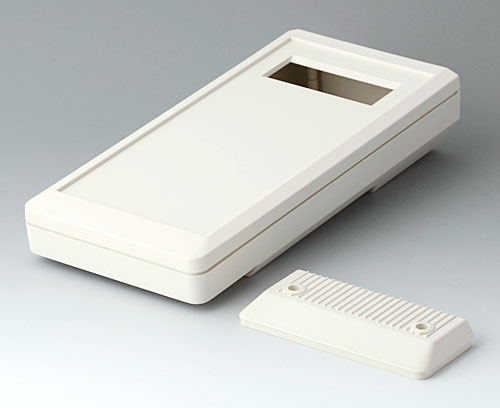

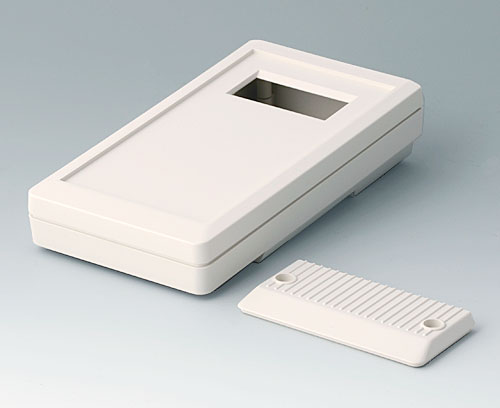

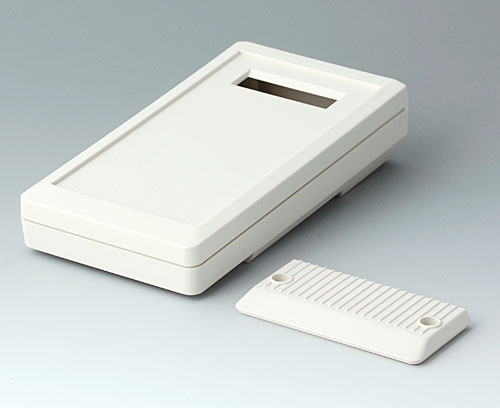

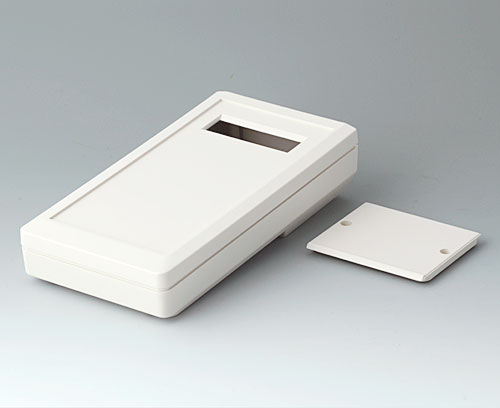

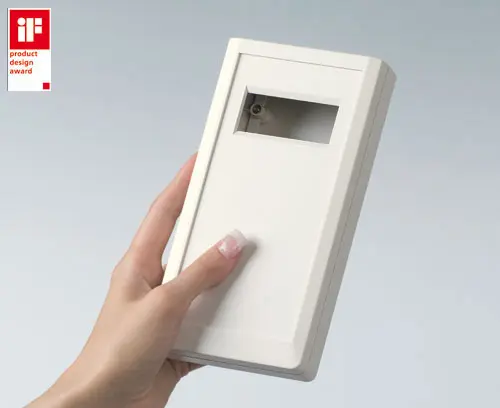

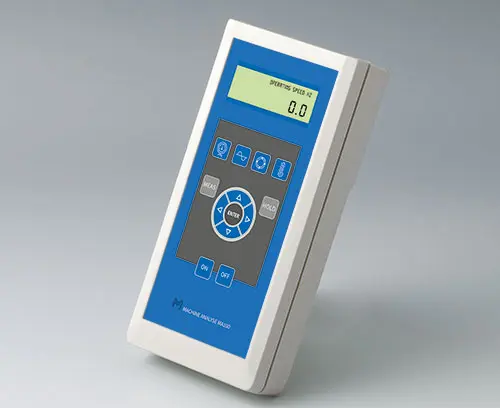

Datec-Mobil-Box

Robust IP 65 handheld enclosures

These high performance plastic enclosures have been tailor made to meet the needs of mobile data collection devices used indoor or outdoor.

  • ergonomic profile for comfortable holding and operating
  • robust with a high protection class up to IP65 (sealing kit accessory)

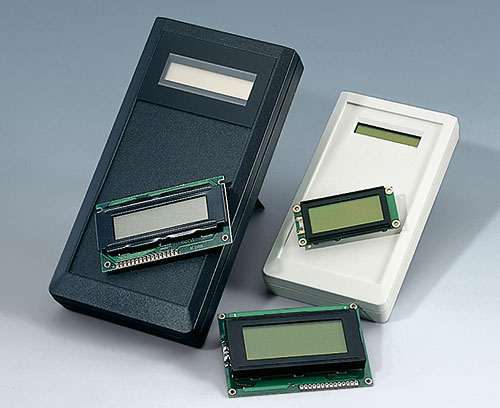

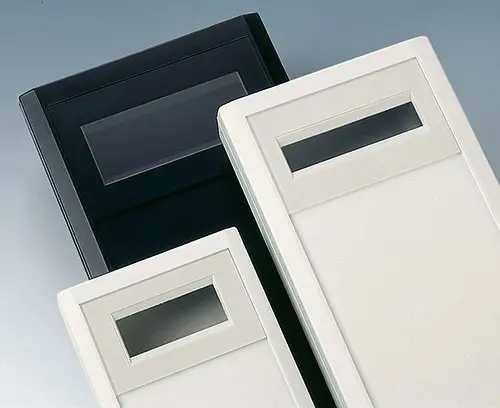

  • designed for installing standard LCD modules; accessory acrylic display windows protect the display area and guarantee a high protection class
  • plain surfaces for interfaces

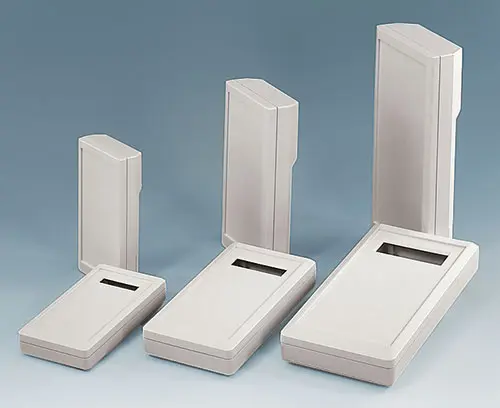

  • three sizes in two colours

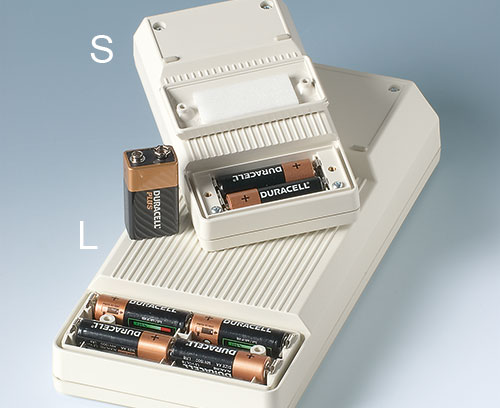

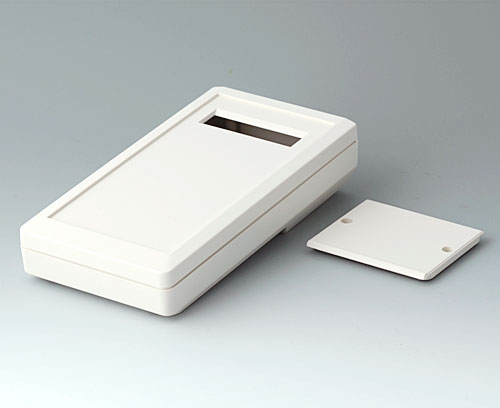

  • sizes S and L with/without a battery compartment
  • size M with battery compartment lid only - battery holders ordered separately

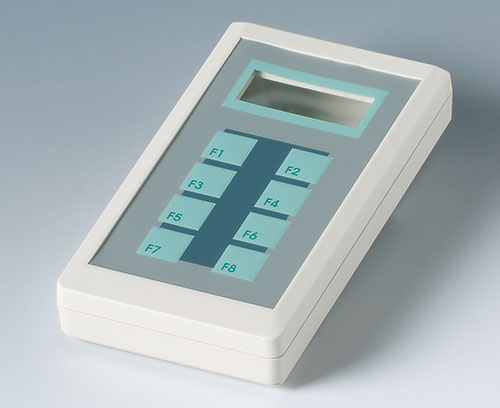

  • recessed operating area for protecting the membrane keypad
  • internal fastening pillars for PCBs

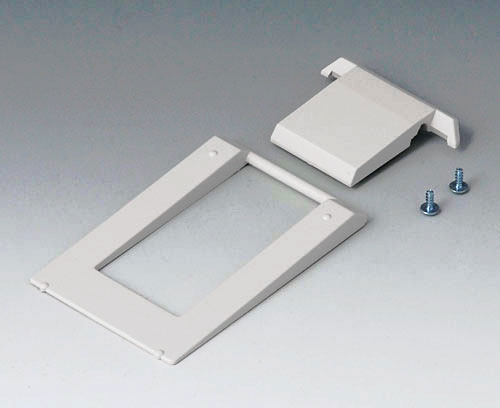

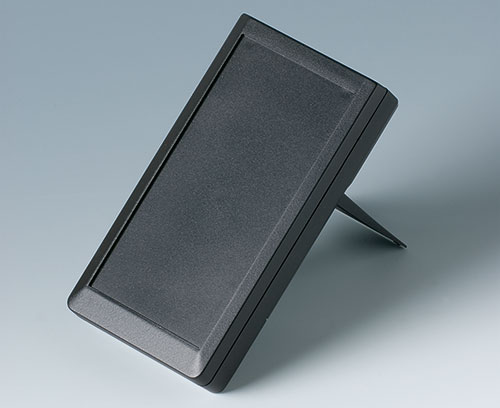

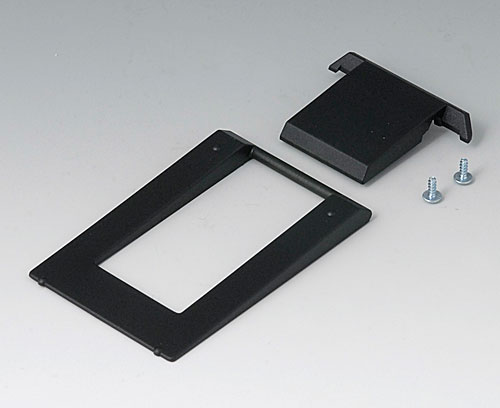

  • tilt foot bar provides ergonomic canting for desktop applications (accessory)

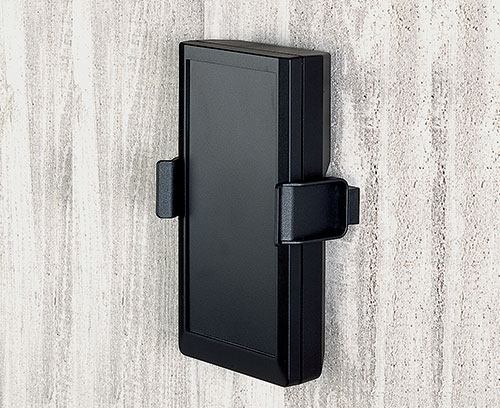

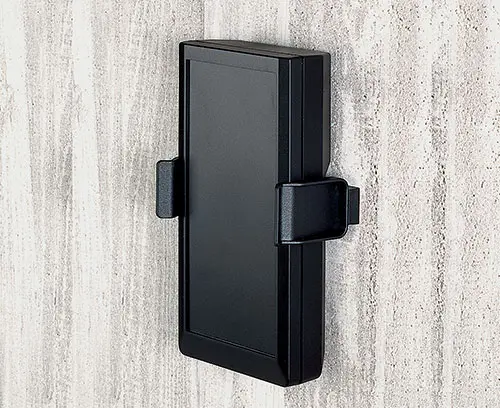

  • wall suspension element for secure storage of the enclosure (accessory)
  • rubber protector absorbs impacts and protects surfaces (acc. size L)

Designer Statement

"The DATEC-MOBIL-BOX is a real space marvel. If you include the DATEC-POCKET-BOX product line, you have six housing sizes at your disposal that are matched to commercially available components and allow the interior to be used efficiently right down to the last corner. Each of these mobile enclosures can be described as the epitome of space utilisation, in conjunction with the functionality of standard display, operating panel, interfaces and power supply. When it comes to compact and mobile products, this enclosure design is second to none."
Martin Nußberger, polyform Industrie Design

Generate PDF

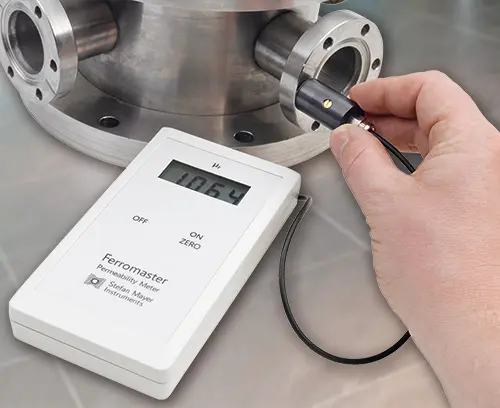

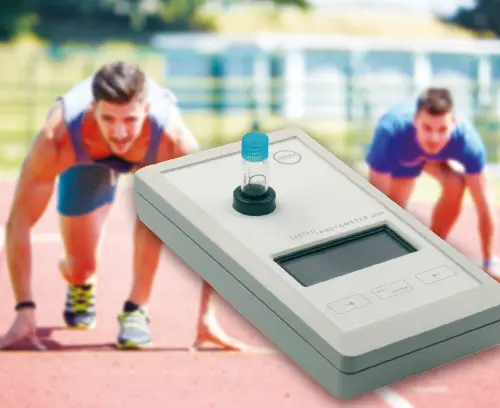

  • Application Examples

Application fields

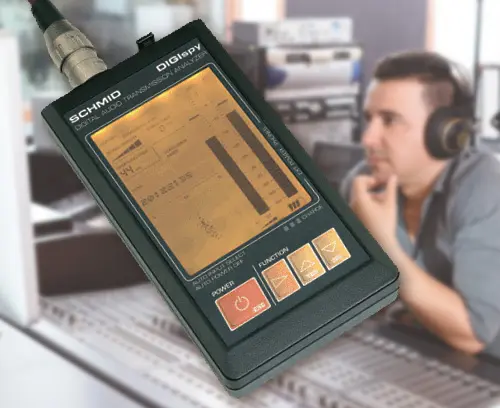

  • Mobile data recording and transfer

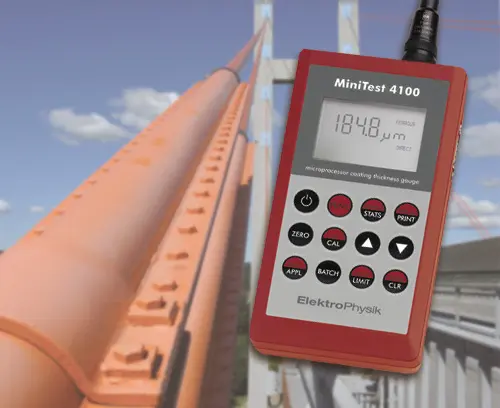

  • Measuring and control technology
  • Stock and sales logging
  • Digital controlling technology
  • Particularly suitable for harsh indoor and outdoor environments
  • Select Versions
  • Accessories
  • View Customising Options

Select which version/size you want below or browse full product list

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
product added to your basket
A0308031 Self-tapping screws 3 x 8 mm (PZ1)

A0308031

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0308031

Self-tapping screws 3 x 8 mm (PZ1)
product added to your basket
A0308132 Self-tapping screw 3 x 8 mm (T10)

A0308132

Self-tapping screw 3 x 8 mm (T10) Self-tapping screw with T10 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0308132

Self-tapping screw 3 x 8 mm (T10)
product added to your basket
Stainless steel
A9100002 Ring eyelet

A9100002

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.

Supply 1 ring eyelet

Close

A9100002

Ring eyelet
product added to your basket
PA 6
volcano
A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

Close

A9160003

Plug-in contact, 1 x 9 V (PP3)
product added to your basket
A9161002 Set of battery clips, 2 x 9 V or 4 x AA

A9161002

Set of battery clips, 2 x 9 V or 4 x AA For contacting the batteries 2 x 9 V.
Note application DATEC-MOBIL-BOX L with battery compartment: only for this enclosure 2 x 9 V or 4 x AA is possible.

Supply 4 single contacts

Close

A9161002

Set of battery clips, 2 x 9 V or 4 x AA
product added to your basket
Steel
tin-plated

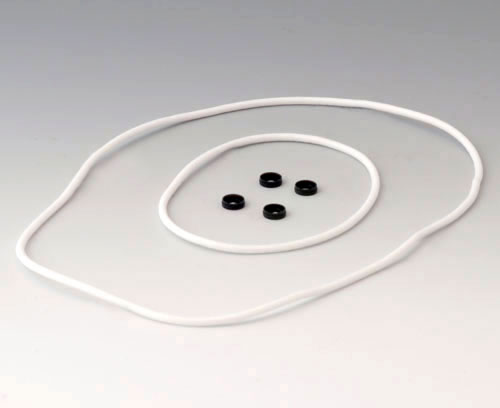

A9173001 Sealing kit S

A9173001

Sealing kit S Application: for increasing the protection class, of DATEC-MOBIL-BOX S.

Supply 2 sealings, 4 sealing rings

Close

A9173001

Sealing kit S
product added to your basket

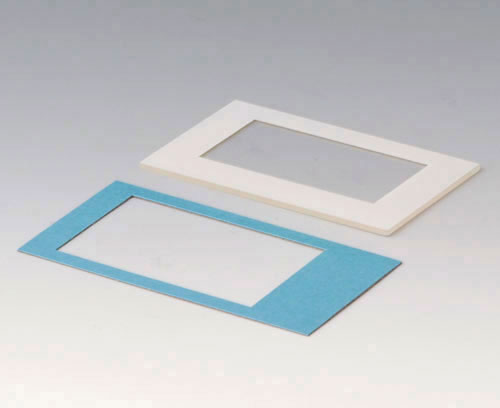

A9173007 Display window S, border off-white

A9173007

Display window S, border off-white The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version II.

Supply 1 display window, 1 adhesive foil

Close

A9173007

Display window S, border off-white
product added to your basket
Acrylic glass
transparent

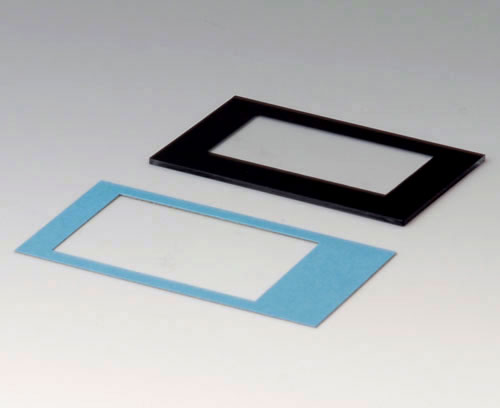

A9173009 Display window S, border black

A9173009

Display window S, border black The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version II.

Supply 1 display window, 1 adhesive foil

Close

A9173009

Display window S, border black
product added to your basket
Acrylic glass
transparent

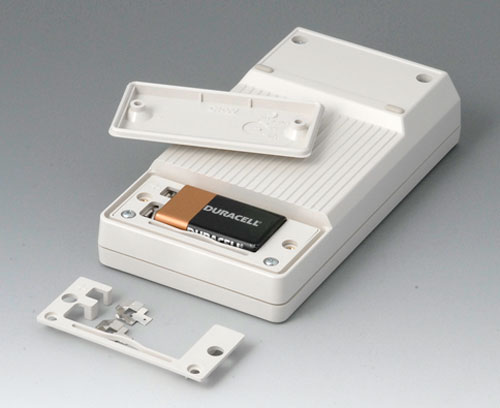

A9173010 9 V contact kit, 1 x 9 V

A9173010

9 V contact kit, 1 x 9 V For 1 x 9 V flat battery (PP3), Offering polarity and torsion protection. Alternative to the traditional plug-in contact.

Supply 1 plug-in contact set

Close

A9173010

9 V contact kit, 1 x 9 V
product added to your basket
ABS (UL 94 HB)

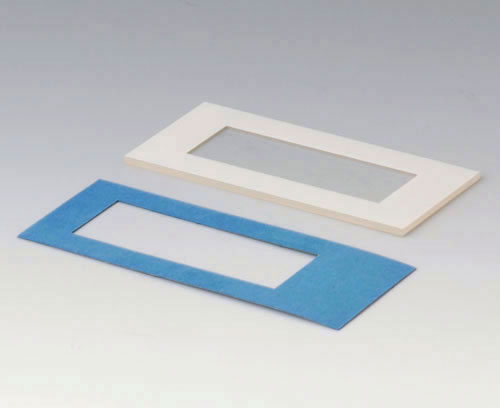

A9173307 Display window S, border off-white

A9173307

Display window S, border off-white The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version III.

Supply 1 display window, 1 adhesive foil

Close

A9173307

Display window S, border off-white
product added to your basket
Acrylic glass
transparent

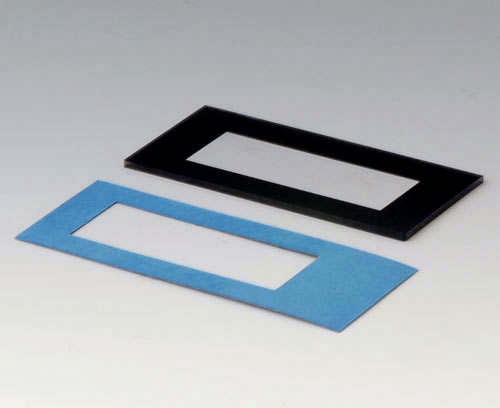

A9173309 Display window S, border black

A9173309

Display window S, border black The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version III.

Supply 1 display window, 1 adhesive foil

Close

A9173309

Display window S, border black
product added to your basket
Acrylic glass
transparent

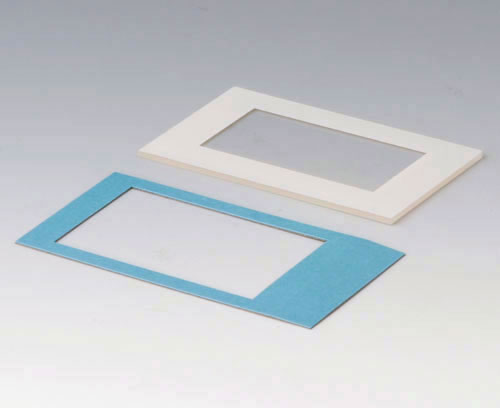

A9173407 Display window S, border off-white

A9173407

Display window S, border off-white The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version IV.

Supply 1 display window, 1 adhesive foil

Close

A9173407

Display window S, border off-white
product added to your basket
Acrylic glass
transparent

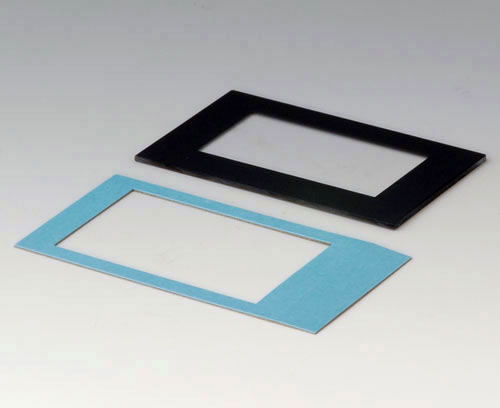

A9173409 Display window S, border black

A9173409

Display window S, border black The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version IV.

Supply 1 display window, 1 adhesive foil

Close

A9173409

Display window S, border black
product added to your basket
Acrylic glass
transparent

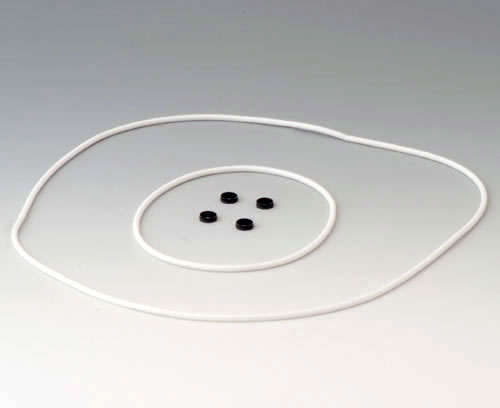

A9174001 Sealing kit M

A9174001

Sealing kit M Application: for increasing the protection class, of DATEC-MOBIL-BOX M.

Supply 2 sealings, 4 sealing rings

Close

A9174001

Sealing kit M
product added to your basket

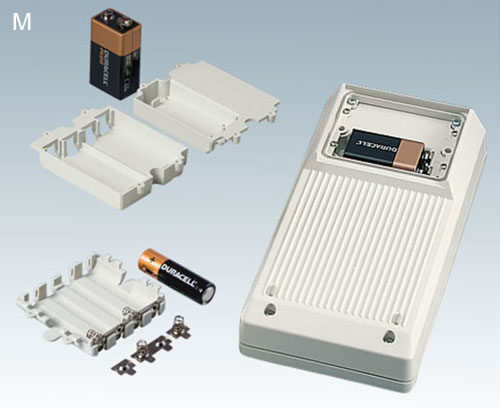

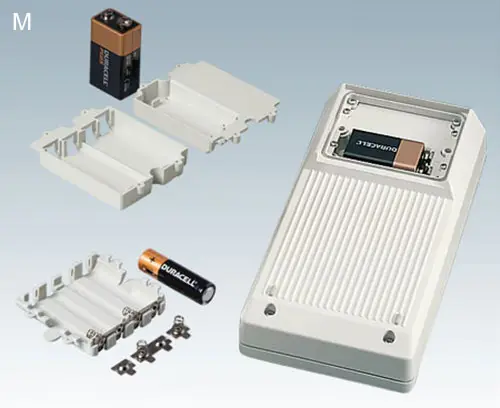

A9174002 Battery compartment, 2 x 9 V

A9174002

Battery compartment, 2 x 9 V Application: for 2 x 9 V flat batteries (PP3).

Supply 1 battery compartment, assembly kit

Close

A9174002

Battery compartment, 2 x 9 V
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
A9174003 Battery compartment, 1 x 9 V

A9174003

Battery compartment, 1 x 9 V Application: for 1 x 9 V flat battery (PP3).

Supply 1 battery compartment, assembly kit

Close

A9174003

Battery compartment, 1 x 9 V
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
A9174006 Set of battery clips, 1 x 9 V

A9174006

Set of battery clips, 1 x 9 V For contacting the battery.

Supply 2 single contacts

Close

A9174006

Set of battery clips, 1 x 9 V
product added to your basket
Steel
tin-plated

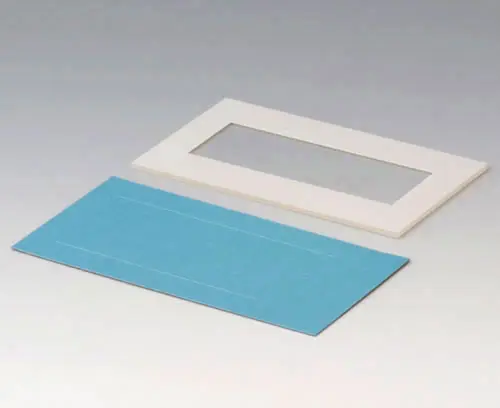

A9174007 Display window M, border off-white

A9174007

Display window M, border off-white The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version II.

Supply 1 display window, 1 adhesive foil

Close

A9174007

Display window M, border off-white
product added to your basket
Acrylic glass
transparent

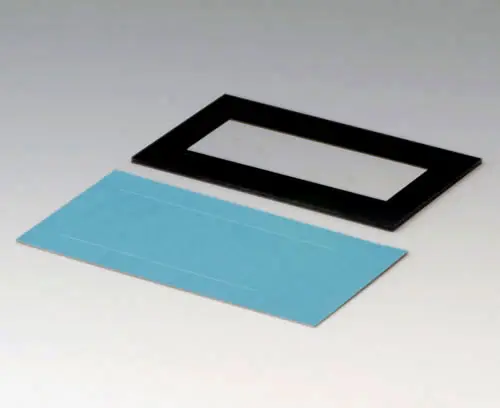

A9174009 Display window M, border black

A9174009

Display window M, border black The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version II.

Supply 1 display window, 1 adhesive foil

Close

A9174009

Display window M, border black
product added to your basket
Acrylic glass
transparent

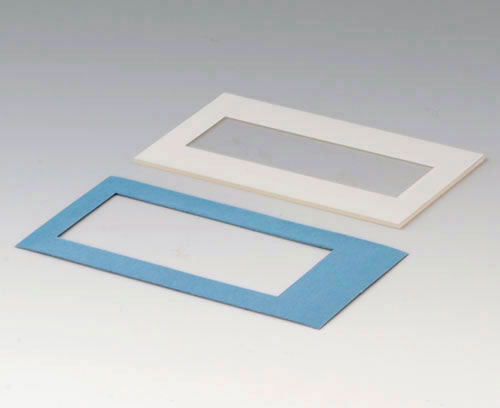

A9174307 Display window M, border off-white

A9174307

Display window M, border off-white The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version III.

Supply 1 display window, 1 adhesive foil

Close

A9174307

Display window M, border off-white
product added to your basket
Acrylic glass
transparent

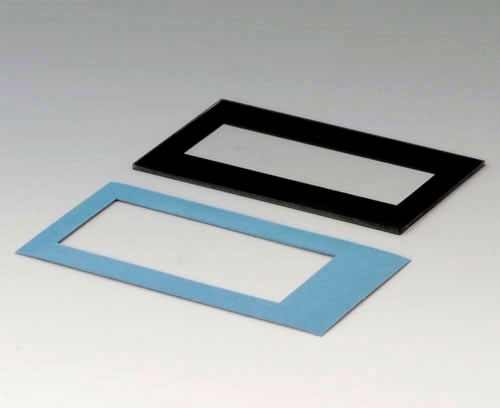

A9174309 Display window M, border black

A9174309

Display window M, border black The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version III.

Supply 1 display window, 1 adhesive foil

Close

A9174309

Display window M, border black
product added to your basket
Acrylic glass
transparent
A9174407 Display window M, border off-white

A9174407

Display window M, border off-white The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For Version IV

Supply 1 display window, 1 adhesive foil

Close

A9174407

Display window M, border off-white
product added to your basket
Acrylic glass
transparent

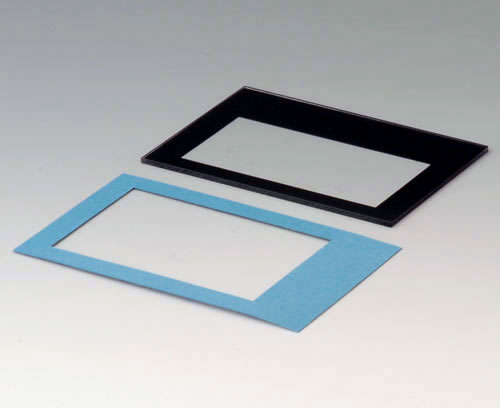

A9174409 Display window M, border black

A9174409

Display window M, border black The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version IV.

Supply 1 display window, 1 adhesive foil

Close

A9174409

Display window M, border black
product added to your basket
Acrylic glass
transparent

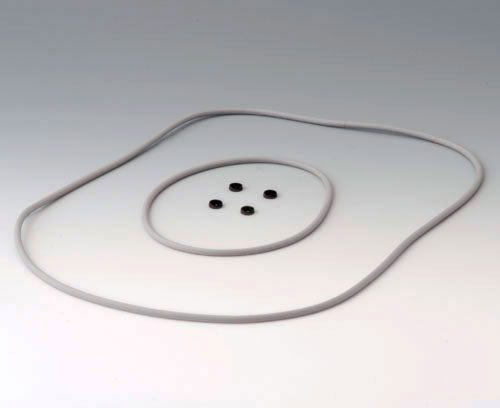

A9175001 Sealing kit L

A9175001

Sealing kit L Application: for increasing the protection class, of DATEC-MOBIL-BOX L.

Supply 2 sealings, 4 sealings rings

Close

A9175001

Sealing kit L
product added to your basket

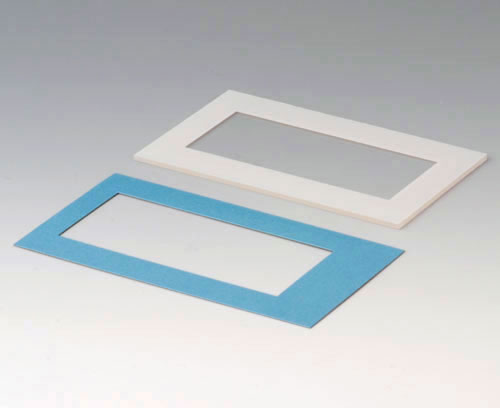

A9175007 Display window L, border off-white

A9175007

Display window L, border off-white The display window protects the installed display and achieves protection class within the display area. The printing matches with the visible area of the display cutout.

Supply 1 display window, 1 adhesive foil

Close

A9175007

Display window L, border off-white
product added to your basket
Acrylic glass
transparent

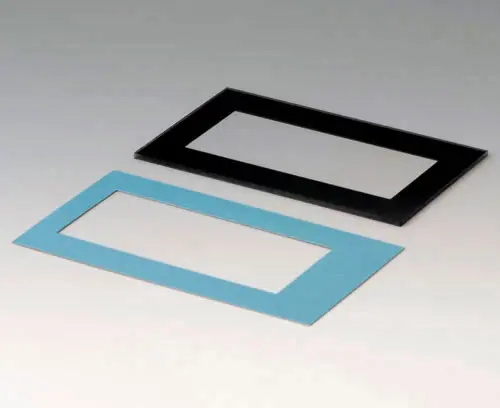

A9175009 Display window L, border black

A9175009

Display window L, border black The display window protects the installed display and achieves protection class within the display area. The printing matches with the visible area of the display cutout.

Supply 1 display window, 1 adhesive foil

Close

A9175009

Display window L, border black
product added to your basket
Acrylic glass
transparent

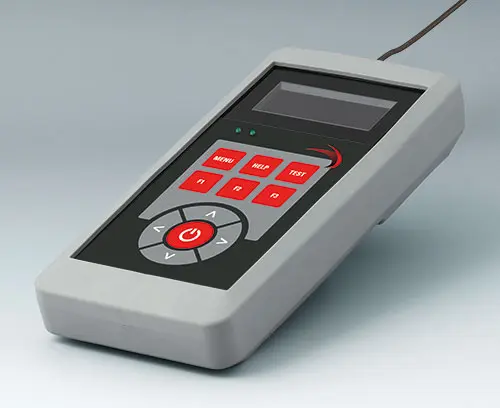

A9175108 Protector L

A9175108

Protector L Special protector for DATEC-MOBIL-BOX L. Absorbs shocks and so protects the electronics in the case. Ideal also as a surface protector for peripheral equipment, appliances etc. Simple assembly through the use of a special elastomer.

Supply 1 protector

Close

A9175108

Protector L
product added to your basket
SBS (TPE)
volcano
A9190011 Set of battery clips, 2 x AA

A9190011

Set of battery clips, 2 x AA For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.

Supply 1 double contacts right, 1 single contact positive, 1 single contact negative

Close

A9190011

Set of battery clips, 2 x AA
product added to your basket
Steel
nickel-plated

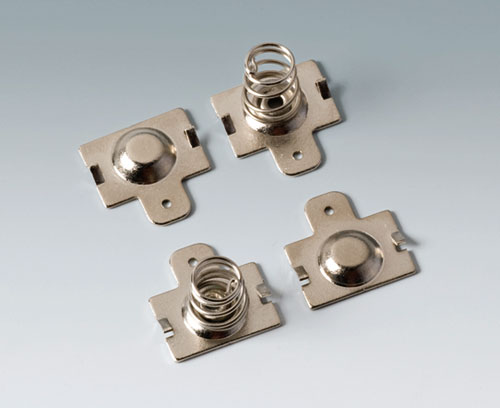

A9190012 Set of battery clips, 4 x AA

A9190012

Set of battery clips, 4 x AA For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.

Supply 2 single contact positive, 2 single contact negative

Close

A9190012

Set of battery clips, 4 x AA
product added to your basket
Steel
nickel-plated
A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Close

A9207150

Anti-slide feet 6.5 x 2 mm
product added to your basket
transparent

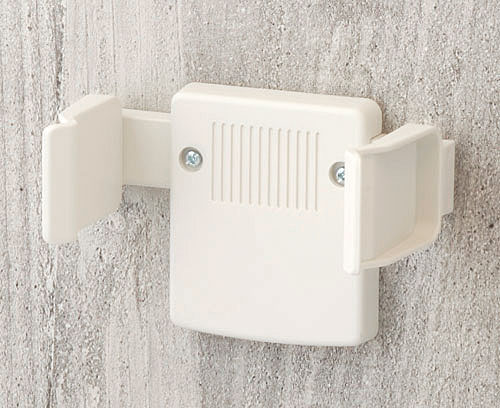

A9226127 Wall suspension element

A9226127

Wall suspension element Wall suspension element for DATEC-MOBIL-BOX L. Two clasps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

Close

A9226127

Wall suspension element
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002

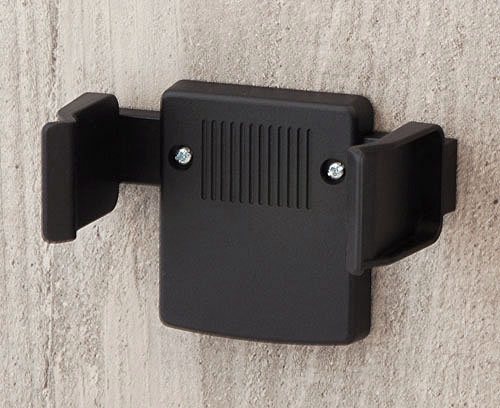

A9226129 Wall suspension element

A9226129

Wall suspension element Wall suspension element for DATEC-MOBIL-BOX L. Two clasps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

Close

A9226129

Wall suspension element
product added to your basket
ABS (UL 94 HB)
black RAL 9005

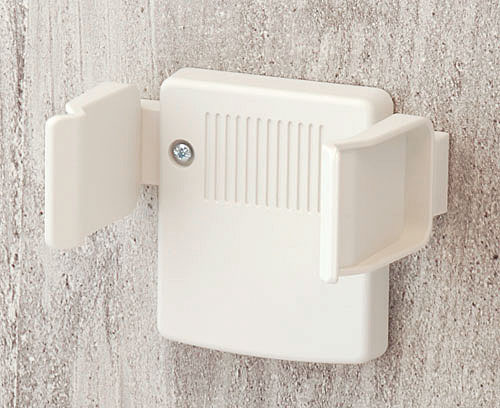

A9226227 Wall suspension element

A9226227

Wall suspension element Wall suspension element for DATEC-MOBIL-BOX M and DATEC-CONTROL S. Two clasps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

Close

A9226227

Wall suspension element
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
A9226229 Wall suspension element

A9226229

Wall suspension element Wall suspension element for DATEC-MOBIL-BOX M and DATEC-CONTROL S. Two clasps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

Close

A9226229

Wall suspension element
product added to your basket
ABS (UL 94 HB)
black RAL 9005

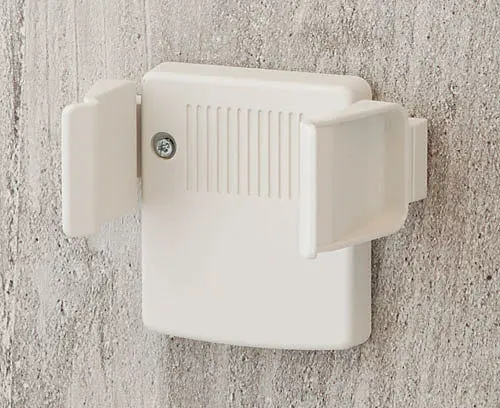

A9226237 Wall suspension element

A9226237

Wall suspension element Wall suspension element for DATEC-MOBIL-BOX S + SENSO-CASE M. Two clasps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

Close

A9226237

Wall suspension element
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
A9226239 Wall suspension element

A9226239

Wall suspension element Wall suspension element for DATEC-MOBIL-BOX S + SENSO-CASE M. Two clasps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

Close

A9226239

Wall suspension element
product added to your basket
ABS (UL 94 HB)
black RAL 9005
A9250250 Battery spacer

A9250250

Battery spacer The self-adhesive spacer provides mignon cells with safe support in all battery compartments which can also be used for 9 V flat batteries.
Application: DATEC-MOBIL-BOX S, DATEC-CONTROL XS, HAND-TERMINAL, LUX-CASES 150 and 190, SHELL-TYPE CASES vers. III and IV, HAND-HELD-BOX N.

Supply 1 spacer

Close

A9250250

Battery spacer
product added to your basket
PE foam
50x25x4mm
A9250907 Tilt foot bar

A9250907

Tilt foot bar Special for DATEC-MOBIL-BOX M/S (preformend centerings are already considered). Facilitates ergonomical reading angles (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a beter grip.

Supply 1 tilt foot bar, assembly kit

Close

A9250907

Tilt foot bar
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
A9250909 Tilt foot bar

A9250909

Tilt foot bar Special for DATEC-MOBIL-BOX M/S (preformend centerings are already considered). Facilitates ergonomical reading angles (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a beter grip.

Supply 1 tilt foot bar, assembly kit

Close

A9250909

Tilt foot bar
product added to your basket
ABS (UL 94 HB)
black RAL 9005
A9345217 Set of battery compartment, 4 x AA

A9345217

Set of battery compartment, 4 x AA For 4 x 1.5 V mignon-cells (AA). Complies with DIN EN 60601 (short circuit caused by incorrect insertion of batteries impossible).

Supply 1 battery compartment, battery clips nickel-plated, assembly kit

Close

A9345217

Set of battery compartment, 4 x AA
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002

Customising options for Datec-Mobil-Box

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
