Net-Box

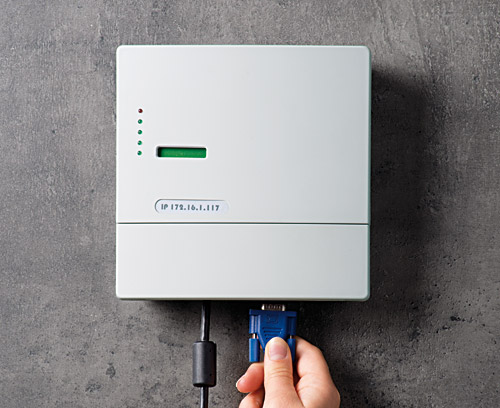

Wall mount enclosures for control units

NET-BOX plastic enclosures have a slim design and stylish curved top section, this makes these modern and elegant housings perfect for wall mounted control units, network nodes and much more.

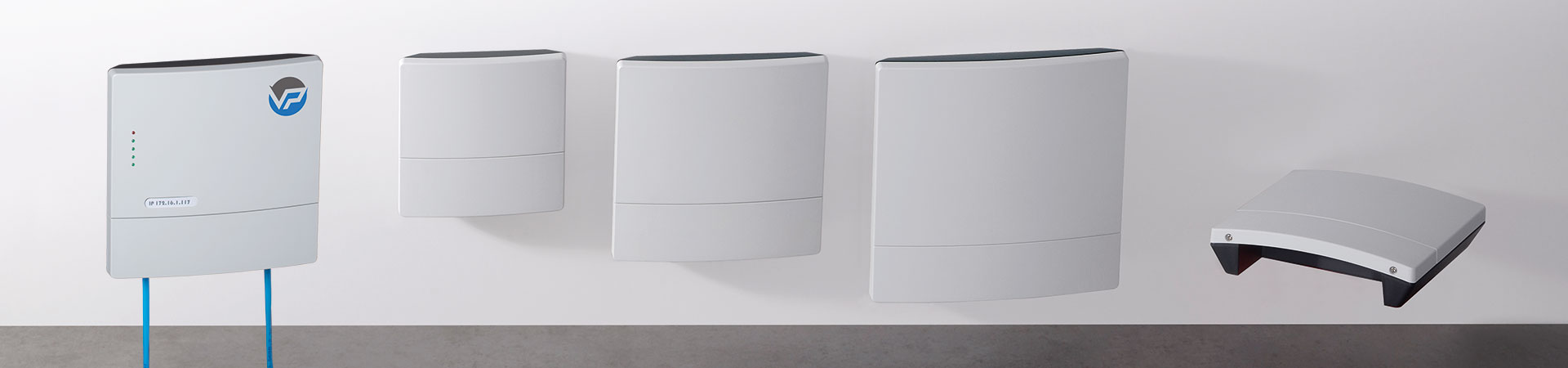

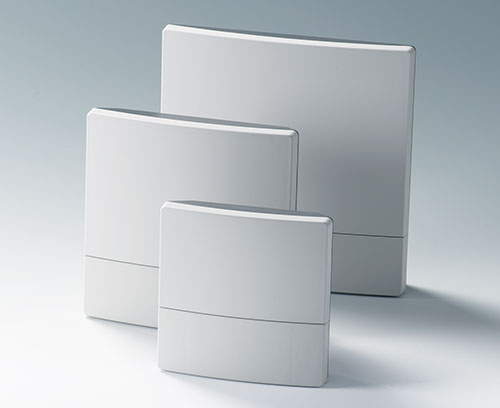

  • three sizes with plenty of room for electronics and interfaces

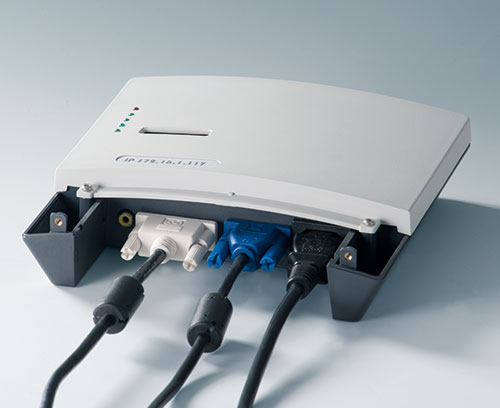

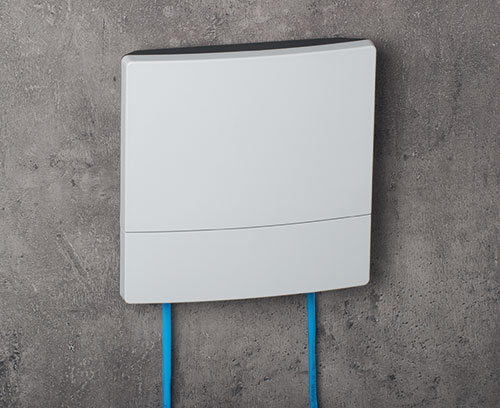

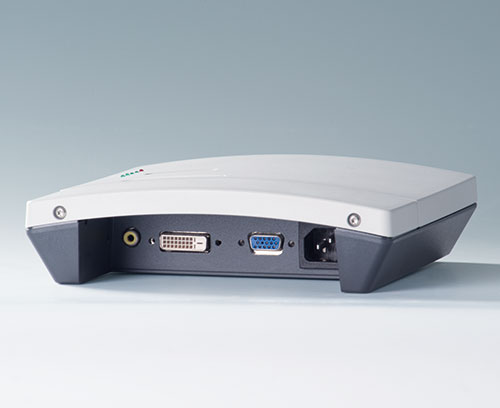

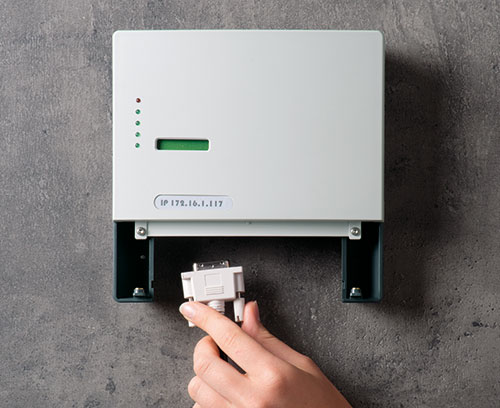

  • the connectors and cables are hidden under the front lid

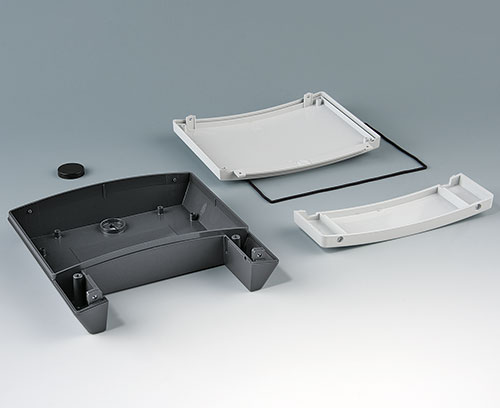

  • the cases are moulded in flame retardant material and can be sealed to IP 65

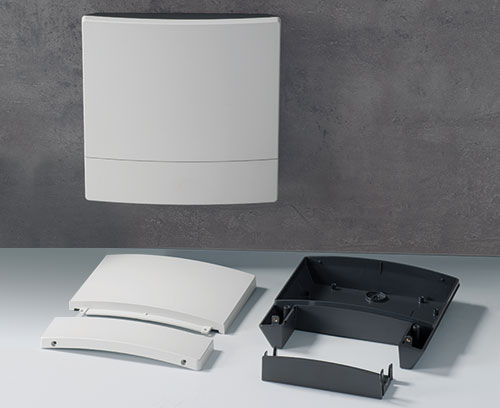

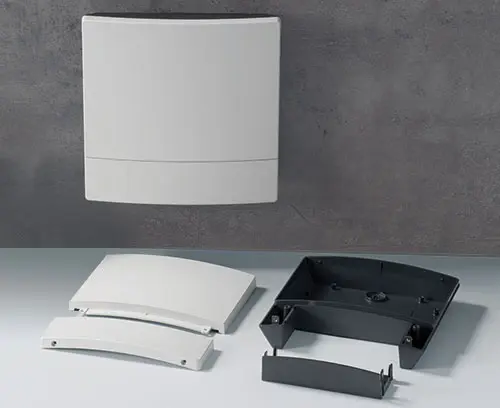

  • simple three part assembly - bottom part, front cover and front lid; there are no visible screws on the front, just two on the underside of the lid

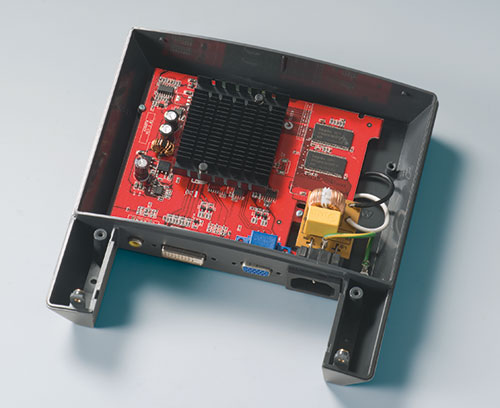

  • screw pillars are provided in the bottom part for mounting PCBs and assemblies

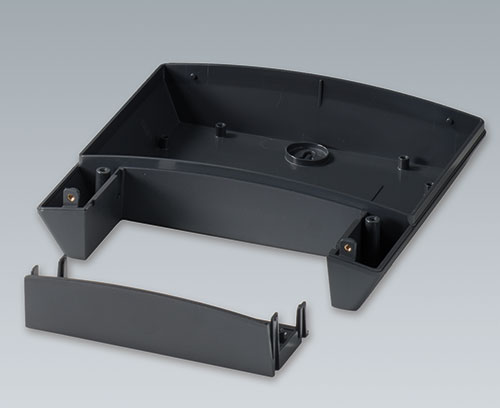

  • optional infill covers close the underside opening and can be used for fitting additional PCBs or assemblies
  • three point wall mounting system - no need to open the main electronics section, only the front lid has be refitted after installation (version II already has openings in the bottom part)
  • supplied with anti-tamper Torx T10 assembly screws
  • NET-BOX cases can also be used as desktop units, accessory non-slip feet are available
Generate PDF
  • Video

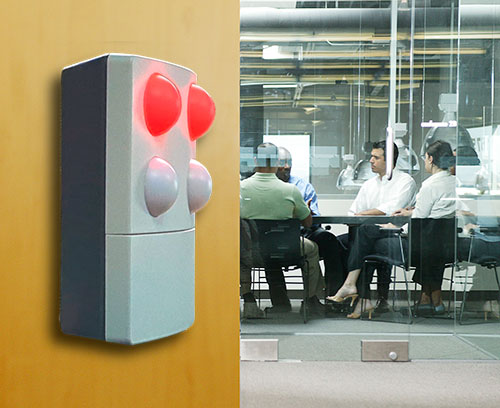

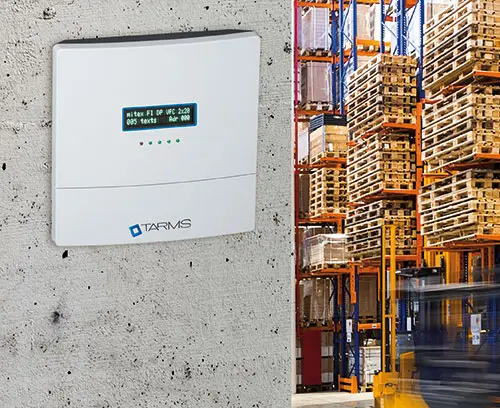

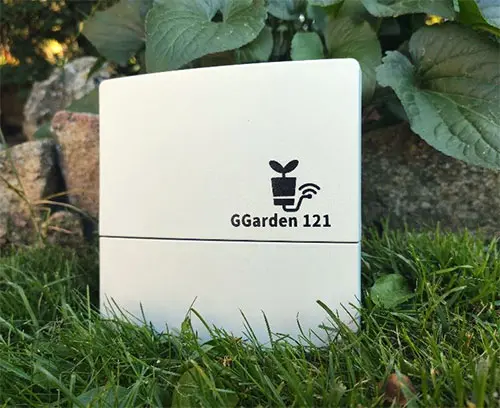

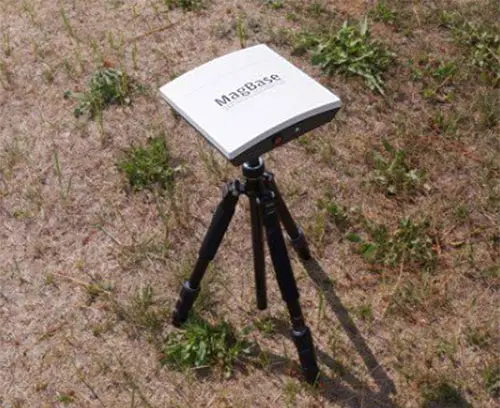

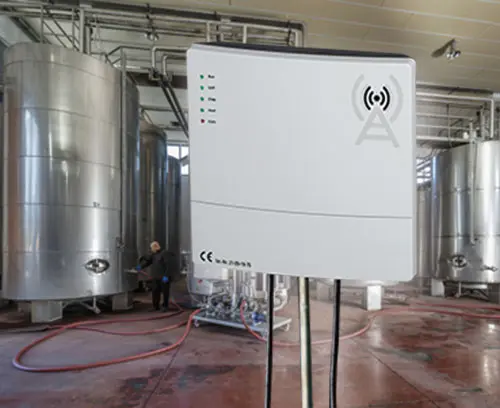

  • Application Examples

Application fields

  • Building management
  • Central control units

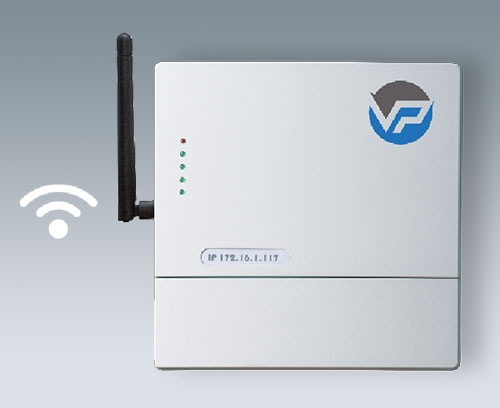

  • IoT/IIoT
  • Smart Factory
  • Industry 4.0
  • Gateways
  • Data acquisition systems
  • Data systems engineering
  • Measuring and control technology
  • Supervision terminals and access control

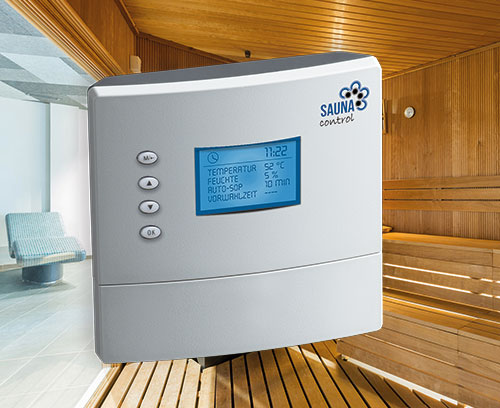

  • Medical and wellness technology
  • Browse Full List
  • Accessories
  • View Customising Options
B3214101 NET-BOX 140, Vers. I

B3214101

NET-BOX 140, Vers. I Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.

Version Bottom part without openings.

Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit

Close

B3214101

NET-BOX 140, Vers. I
product added to your basket
ASA+PC (UL 94 V-0)
light grey RAL 7035
140x140x46.5mm
IP 65 opt., IP 40

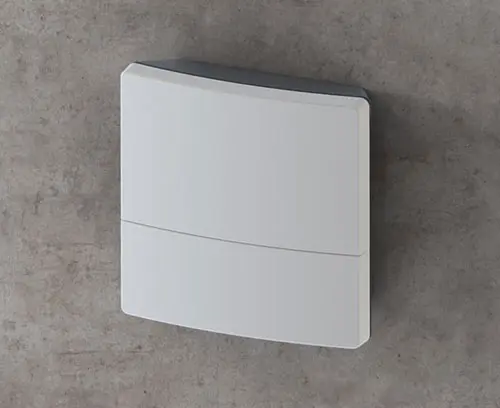

B3214201 NET-BOX 140, Vers. II

B3214201

NET-BOX 140, Vers. II Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.

Version Bottom part with openings for concealed three-point wall mounting: 1 keyhole for central mounting and 2 holes to secure the enclosure on the bottom right and left.

Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit

Close

B3214201

NET-BOX 140, Vers. II
product added to your basket
ASA+PC (UL 94 V-0)
light grey RAL 7035
140x140x46.5mm
IP 65 opt.
B3218101 NET-BOX 180, Vers. I

B3218101

NET-BOX 180, Vers. I Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.

Version Bottom part without openings.

Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit

Close

B3218101

NET-BOX 180, Vers. I
product added to your basket
ASA+PC (UL 94 V-0)
light grey RAL 7035
180x180x48.5mm
IP 65 opt., IP 40
B3218201 NET-BOX 180, Vers. II

B3218201

NET-BOX 180, Vers. II Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.

Version Bottom part with openings for concealed three-point wall mounting: 1 keyhole for central mounting and 2 holes to secure the enclosure on the bottom right and left.

Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit

Close

B3218201

NET-BOX 180, Vers. II
product added to your basket
ASA+PC (UL 94 V-0)
light grey RAL 7035
180x180x48.5mm
IP 65 opt.
B3222101 NET-BOX 220, Vers. I

B3222101

NET-BOX 220, Vers. I Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.

Version Bottom part without openings.

Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit

Close

B3222101

NET-BOX 220, Vers. I
product added to your basket
ASA+PC (UL 94 V-0)
light grey RAL 7035
220x220x50.5mm
IP 65 opt., IP 40

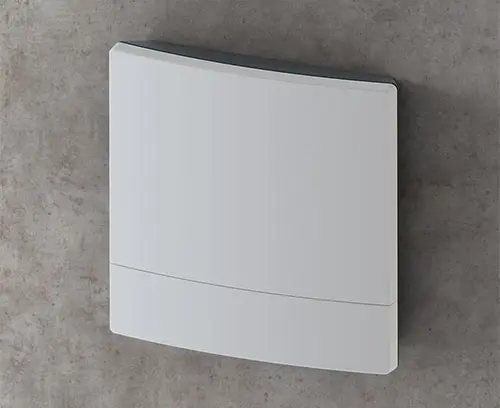

B3222201 NET-BOX 220, Vers. II

B3222201

NET-BOX 220, Vers. II Three-part enclosure with a uniform appearance thanks to concealed screw connections. Modern colour combination of light grey and lava. 2 PCB levels with 4 attachment domes each in the electronics compartment. Can also be used out of doors thanks to the high-quality ASA+PC-FR material.

Version Bottom part with openings for concealed three-point wall mounting: 1 keyhole for central mounting and 2 holes to secure the enclosure on the bottom right and left.

Supply 1 bottom part and 1 top cover, 1 lid and 1 assembly kit

Close

B3222201

NET-BOX 220, Vers. II
product added to your basket
ASA+PC (UL 94 V-0)
light grey RAL 7035
220x220x50.5mm
IP 65 opt.
A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
product added to your basket
A0399T10 Torx T10 screwdriver

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

Close

A0399T10

Torx T10 screwdriver
product added to your basket
A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Close

A9207150

Anti-slide feet 6.5 x 2 mm
product added to your basket
transparent

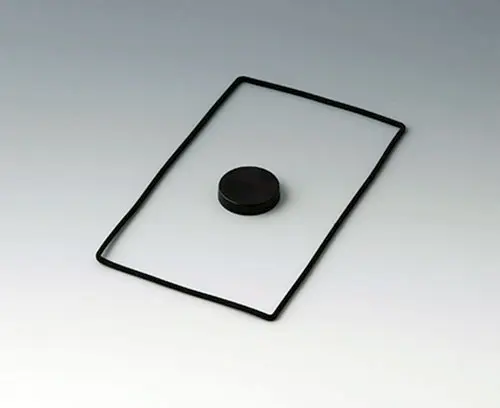

B3314159 Sealing kit 140

B3314159

Sealing kit 140 Application: for increasing the protection class, of NET-BOX140.

Supply 1 sealing kit

Close

B3314159

Sealing kit 140
product added to your basket
Silicone
black

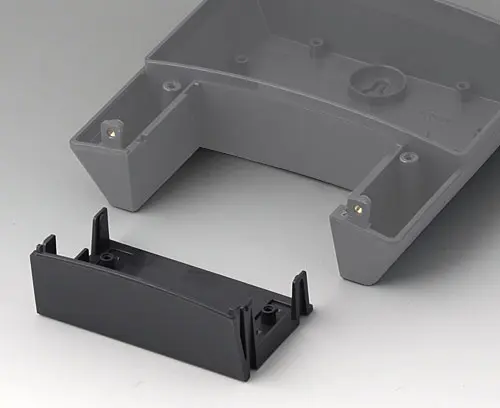

B3314918 Infill cover 140

B3314918

Infill cover 140 With the optional cover you also have the option of fitting a further PCB and visually closing the bottom part of the enclosure.

Supply 1 infill cover

Close

B3314918

Infill cover 140
product added to your basket
ASA+PC (UL 94 V-0)
lava
B3318159 Sealing kit 180

B3318159

Sealing kit 180 Application: for increasing the protection class, of NET-BOX 180.

Supply 1 sealing kit

Close

B3318159

Sealing kit 180
product added to your basket
Silicone
black
B3318918 Infill cover 180

B3318918

Infill cover 180 With the optional cover you also have the option of fitting a further PCB and visually closing the bottom part of the enclosure.

Supply 1 infill cover

Close

B3318918

Infill cover 180
product added to your basket
ASA+PC (UL 94 V-0)
lava

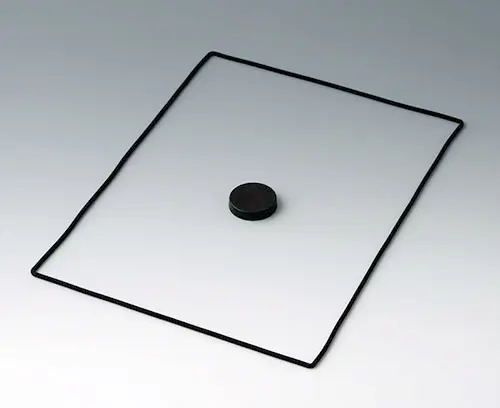

B3322159 Sealing kit 220

B3322159

Sealing kit 220 Application: for increasing the protection class, of NET-BOX 220.

Supply 1 sealing kit

Close

B3322159

Sealing kit 220
product added to your basket
Silicone
black

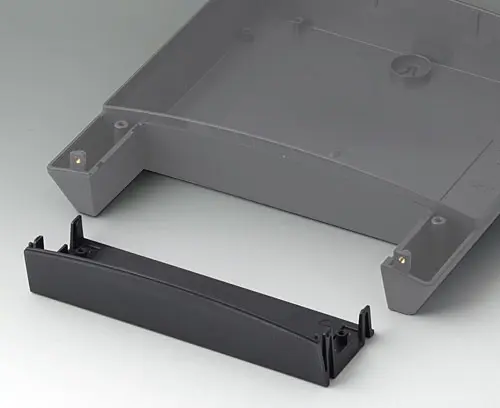

B3322918 Infill cover 220

B3322918

Infill cover 220 With the optional cover you also have the option of fitting a further PCB and visually closing the bottom part of the enclosure.

Supply 1 infill cover

Close

B3322918

Infill cover 220
product added to your basket
ASA+PC (UL 94 V-0)
lava

Customising options for Net-Box

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
