Senso-Case

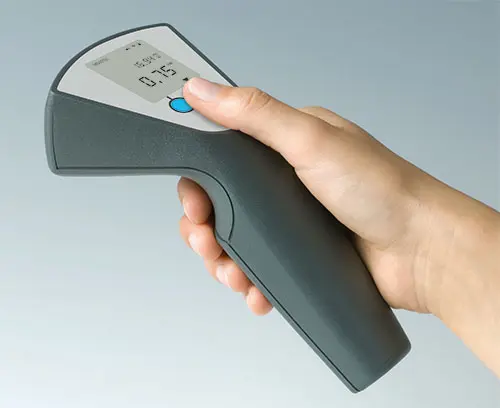

Ergonomic plastic enclosures for single-handed operation

Specific measuring, controlling and signaling tasks, as well as the recording of data using opto-electronic components, can be carried out with SENSO-CASE easily, quickly and reliably.

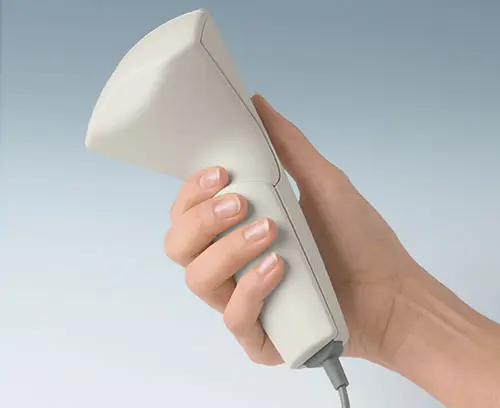

  • particularly user-friendly thanks to its hand grip style, both right and left handed
  • ideally balanced in the hand for maximum user comfort

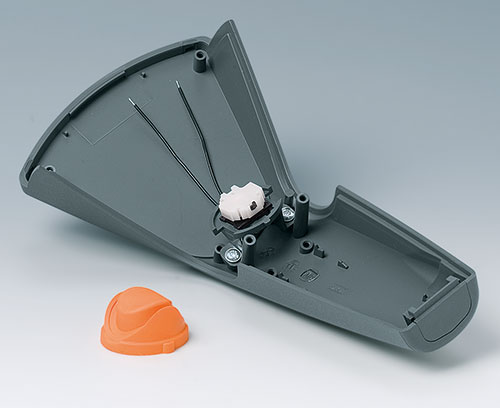

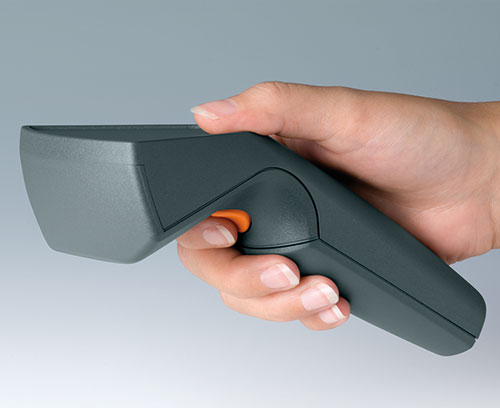

  • versions with/without push-button in the trigger position on the underside for immediate and/or momentary operation

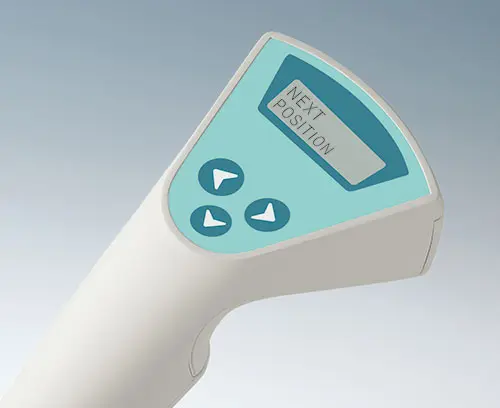

  • recessed control panel for membrane keypads, silicon keyboards, push-buttons and LCDs
  • ideal for pre-assembled electronics assemblies, including those with integrated interfaces

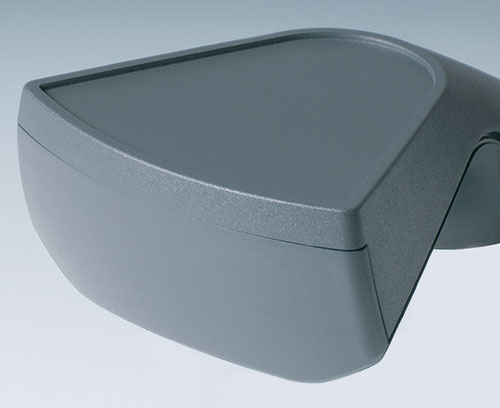

  • large front face for mounting sensors
  • simultaneous operation is possible using standard or rechargeable batteries, or a cable connection

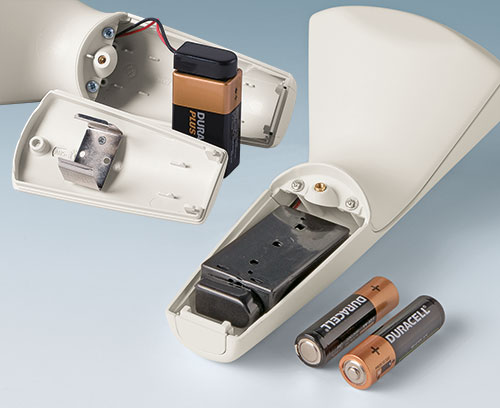

  • internal power supply with 2 x AA or 1 x 9 V cells; battery holders as accessories

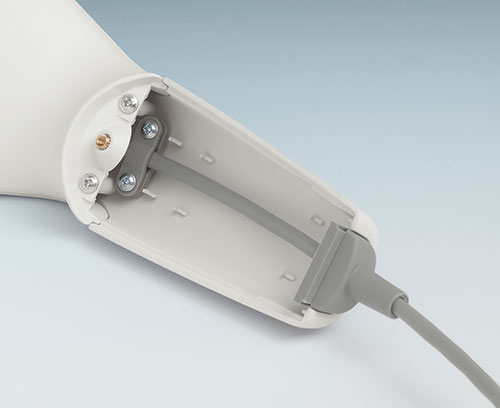

  • version with pre-fitted cable glands, plus strain relief accessory

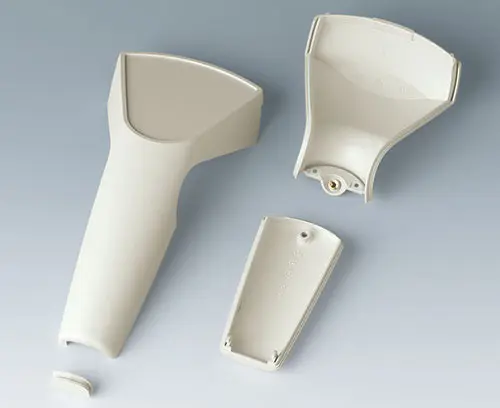

  • four part design: top, base, handle cover, cable gland or removable end panel; further version with additional push-button

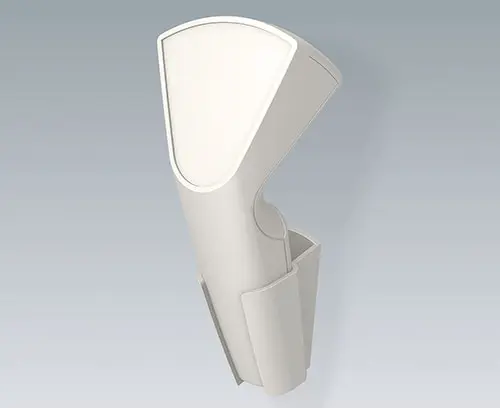

  • holder for secure wall storage as accessory
  • internal fastening pillars for PCBs
Generate PDF
  • Application Examples

Application fields

  • Sensor technology
  • Opto-electronics
  • Opto-digital technologies
  • Industrial image processing
  • Measuring and control technology
  • Stock and sales logging
  • Medical field and laboratory technology
  • Communications
  • Browse Full List
  • Accessories
  • View Customising Options
A9056107 SENSO-CASE M

A9056107

SENSO-CASE M Ergonomic plastic enclosure for single-handed operation. Recessed control panel for operating elements or display modules. Fastening pillars for PCBs in the top part. Space for 9 V flat battery or battery compartment 2 x AA (accessory). Cable strain relief (acc.) alternatively applicable.

Supply Top and bottom part , moulded part, battery compartment lid, assembly kit

Close

A9056107

SENSO-CASE M
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
180x86x45mm
IP 41
A9056108 SENSO-CASE M

A9056108

SENSO-CASE M Ergonomic plastic enclosure for single-handed operation. Recessed control panel for operating elements or display modules. Fastening pillars for PCBs in the top part. Space for 9 V flat battery or battery compartment 2 x AA (accessory). Cable strain relief (acc.) alternatively applicable.

Supply Top and bottom part , moulded part, battery compartment lid, assembly kit

Close

A9056108

SENSO-CASE M
product added to your basket
ABS (UL 94 HB)
lava
180x86x45mm
IP 41
A9056207 SENSO-CASE M

A9056207

SENSO-CASE M Ergonomic plastic enclosure for single-handed operation. Recessed control panel for operating elements or display modules. Fastening pillars for PCBs in the top part. Space for 9 V flat battery or battery compartment 2 x AA (accessory). Cable strain relief (acc.) alternatively applicable. Equipment: with single-pole push-button.

Supply Top and bottom part , moulded part, battery compartment lid, push-buttom with connection cables, assembly kit

Close

A9056207

SENSO-CASE M
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
180x86x45mm
IP 41
A9056208 SENSO-CASE M

A9056208

SENSO-CASE M Ergonomic plastic enclosure for single-handed operation. Recessed control panel for operating elements or display modules. Fastening pillars for PCBs in the top part. Space for 9 V flat battery or battery compartment 2 x AA (accessory). Cable strain relief (acc.) alternatively applicable. Equipment: with single-pole push-button.

Supply Top and bottom part , moulded part, battery compartment lid, push-buttom with connection cables, assembly kit

Close

A9056208

SENSO-CASE M
product added to your basket
ABS (UL 94 HB)
lava
180x86x45mm
IP 41
A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
product added to your basket

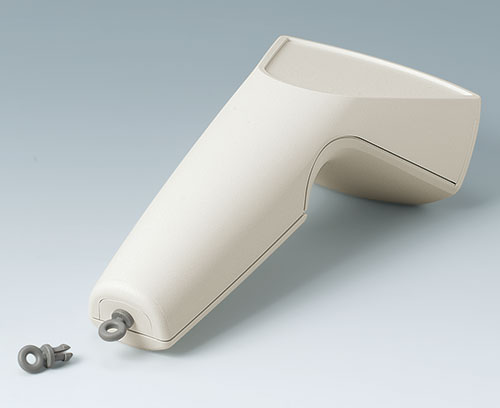

A9100002 Ring eyelet

A9100002

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.

Supply 1 ring eyelet

Close

A9100002

Ring eyelet
product added to your basket
PA 6
volcano
A9156001 Battery holder, 2 x AA

A9156001

Battery holder, 2 x AA For 2 x 1.5 V mignon-cells (AA). Contacts suitable for plug-in contact (sep. asseccory).

Supply 1 battery holder

Close

A9156001

Battery holder, 2 x AA
product added to your basket
PP
black RAL 9005
A9156002 Plug-in contact, 1 x 9 V (PP3)

A9156002

Plug-in contact, 1 x 9 V (PP3) Version: With protective case. Cable length approx. 152 mm. Contact diameters 5.7 / 5.3 mm.
Application: suitable for 9 V flat battery (PP3) or battery holder A9156001.

Supply 1 plug-in contact

Close

A9156002

Plug-in contact, 1 x 9 V (PP3)
product added to your basket
A9156003 Battery holder, 1 x 9 V (PP3)

A9156003

Battery holder, 1 x 9 V (PP3) For 1 x 9 V flat battery (PP3).

Supply 1 battery holder, 2 self-tapping screws

Close

A9156003

Battery holder, 1 x 9 V (PP3)
product added to your basket
Steel
nickel-plated
A9156005 Adhesive foil

A9156005

Adhesive foil For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply 1 piece

Close

A9156005

Adhesive foil
product added to your basket
A9156307 Holder

A9156307

Holder Special holder for SENSO-CASE for safe storing of cable-connected or wireless applications. Fixing at the wall or other surfaces by commercial screws or by adhesive foil (sep. article).

Supply 1 holder

Close

A9156307

Holder
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
A9156308 Holder

A9156308

Holder Special holder for SENSO-CASE for safe storing of cable-connected or wireless applications. Fixing at the wall or other surfaces by commercial screws or by adhesive foil (sep. article).

Supply 1 holder

Close

A9156308

Holder
product added to your basket
ABS (UL 94 HB)
lava
A9166004 Set of pull-relief

A9166004

Set of pull-relief For pull-relief of cable-connected applications. To be mounted onto the towers provided in the case or station.

Supply 2 preshaped pull-relief clamps, 2 self-tapping screws

Close

A9166004

Set of pull-relief
product added to your basket
PA 6
volcano
A9166101 Cable strain, 5.0 - 5.9

A9166101

Cable strain, 5.0 - 5.9 The push-on cable strain relief form an attractive connection with cable-linked applications. Application: for cable diameter 5.0 - 5.9 mm.

Supply 1 cable strain relief

Close

A9166101

Cable strain, 5.0 - 5.9
product added to your basket
SEBS (TPE)
volcano
A9166131 Cable strain, 4.2 - 5.0

A9166131

Cable strain, 4.2 - 5.0 The push-on cable strain relief form an attractive connection with cable-linked applications. Application: for cable diameter 4.2 - 5.0 mm.

Supply 1 cable strain relief

Close

A9166131

Cable strain, 4.2 - 5.0
product added to your basket
SEBS (TPE)
volcano
A9166161 Cable strain, 3.4 - 4.2

A9166161

Cable strain, 3.4 - 4.2 The push-on cable strain relief form an attractive connection with cable-linked applications. Application: for cable diameter 3.4 - 4.2 mm.

Supply 1 cable strain relief

Close

A9166161

Cable strain, 3.4 - 4.2
product added to your basket
SEBS (TPE)
volcano

Customising options for Senso-Case

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
