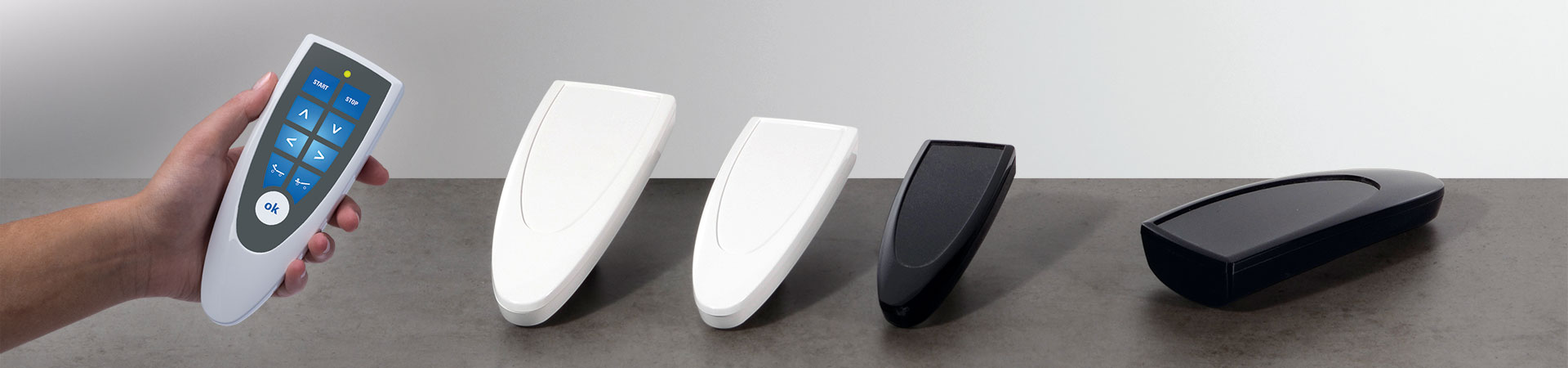

Style-Case

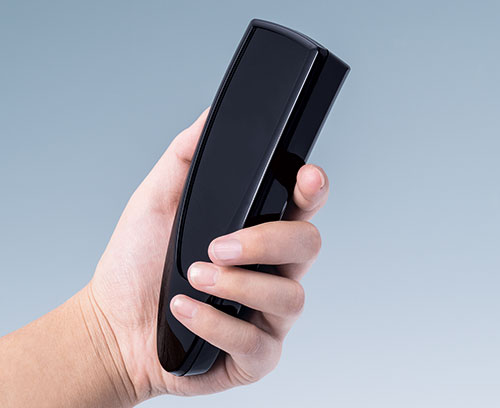

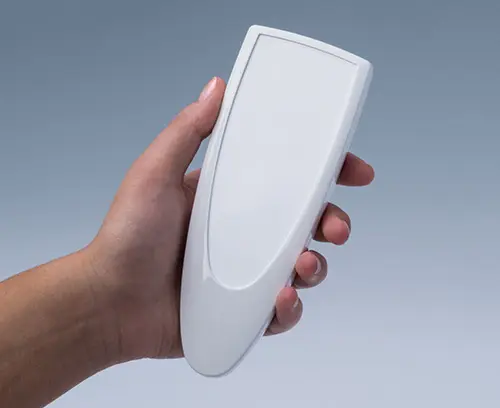

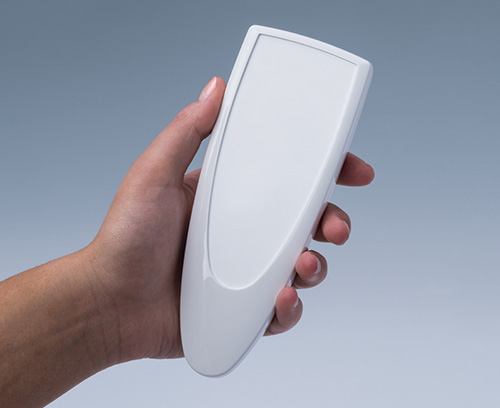

Beautiful, highly polished and ergonomic handheld enclosures

OKW presents the STYLE-CASE which has a high gloss surface finish, thus creating another design highlight for modern handheld control units. These elegant eye-catching plastic enclosures fit snugly in the hand and are easy and reliable to operate. The highly polished surface has a very pleasant feel which imparts a high quality and modern user experience.

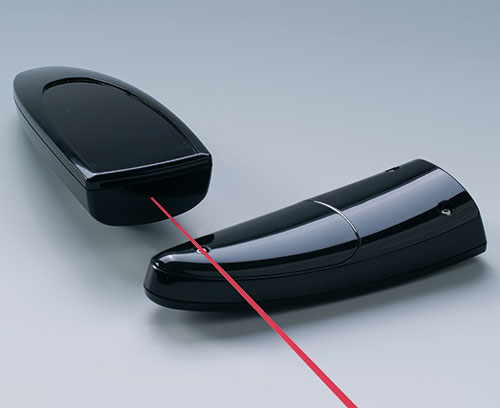

  • high-quality ASA with high UV protection or in PMMA material permeable to infra-red light (Plexiglas)
  • glossy surface is easy to clean

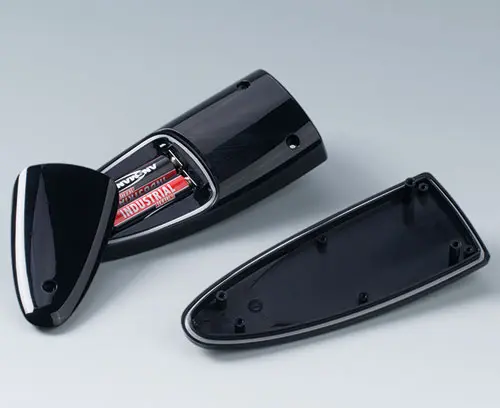

  • robust, offers protection up to IP 65, sealing kit available as accessory
  • assembled by Torx drive stainless steel screws

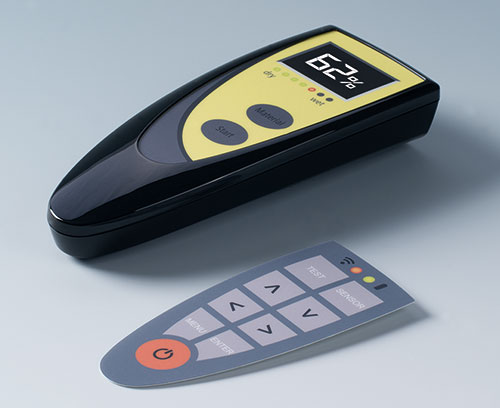

  • recessed operating panel for protecting the membrane keypad / product label
  • integrated battery compartment: 2 x 1.5 V AAA (S, M) and 2 x 1.5 V AA (L), set of battery clips supplied as accessories

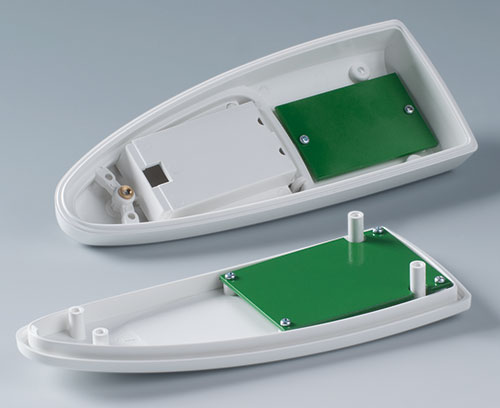

  • attachment pillars for PCBs and components, self-tapping screws for mounting the boards are available as accessories
Generate PDF
  • Video

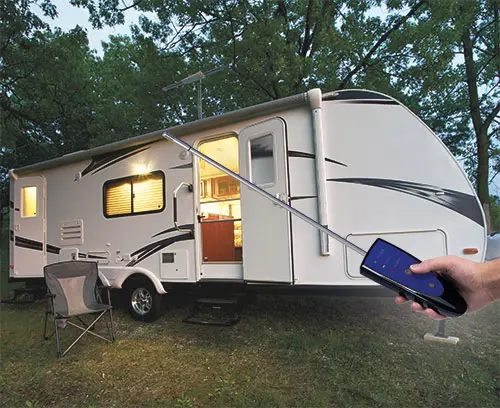

  • Application Examples

Application fields

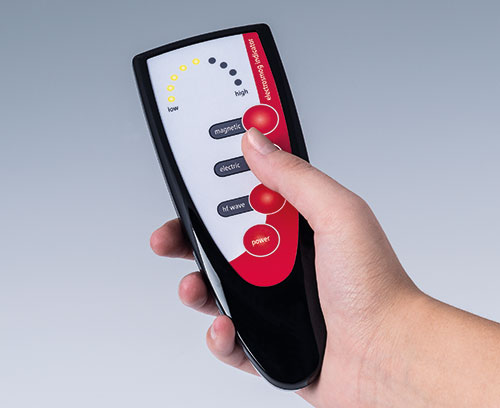

  • Ideal for design-oriented hand control units
  • Many different types of remote control systems

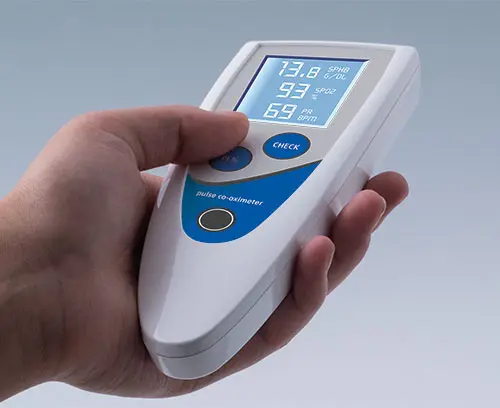

  • Specially made for the medical and social fields as well as in the household and in industry
  • Browse Full List
  • Accessories
  • View Customising Options

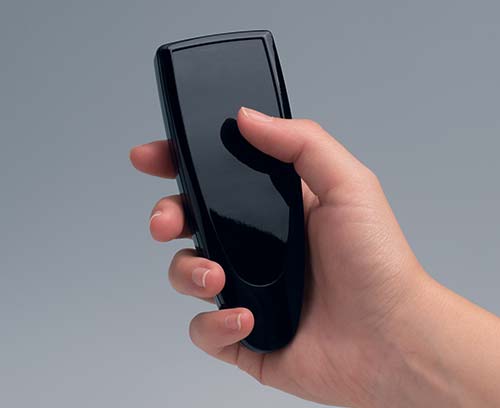

B2802016 STYLE-CASE S

B2802016

STYLE-CASE S Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.

Supply Top and bottom part, battery compartment lid, assembly kit

Close

B2802016

STYLE-CASE S
product added to your basket
PMMA (IR) (UL 94 HB)
black RAL 9005
123x48x24mm
IP 40
B2802017 STYLE-CASE S

B2802017

STYLE-CASE S Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.

Supply Top and bottom part, battery compartment lid, assembly kit

Close

B2802017

STYLE-CASE S
product added to your basket
ASA (UL 94 HB)
traffic white RAL 9016
123x48x24mm
IP 40

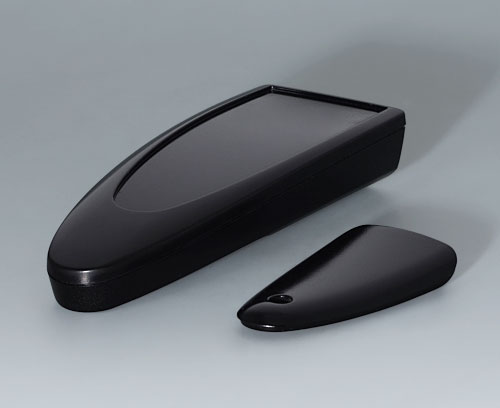

B2803016 STYLE-CASE M

B2803016

STYLE-CASE M Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing kit (accessory). Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.

Supply Top and bottom part, battery compartment lid, assembly kit

Close

B2803016

STYLE-CASE M
product added to your basket
PMMA (IR) (UL 94 HB)
black RAL 9005
147x56x27mm
IP 65 opt., IP 40

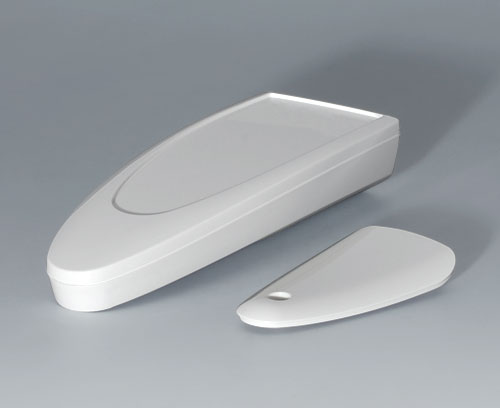

B2803017 STYLE-CASE M

B2803017

STYLE-CASE M Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing kit (accessory). Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.

Supply Top and bottom part, battery compartment lid, assembly kit

Close

B2803017

STYLE-CASE M
product added to your basket
ASA (UL 94 HB)
traffic white RAL 9016
147x56x27mm
IP 65 opt., IP 40

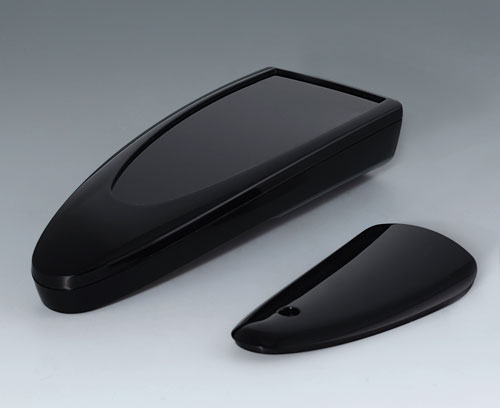

B2804016 STYLE-CASE L

B2804016

STYLE-CASE L Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing kit (accessory). Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AA batteries.

Supply Top and bottom part, battery compartment lid, assembly kit

Close

B2804016

STYLE-CASE L
product added to your basket
PMMA (IR) (UL 94 HB)
black RAL 9005
166x64x31mm
IP 65 opt., IP 40

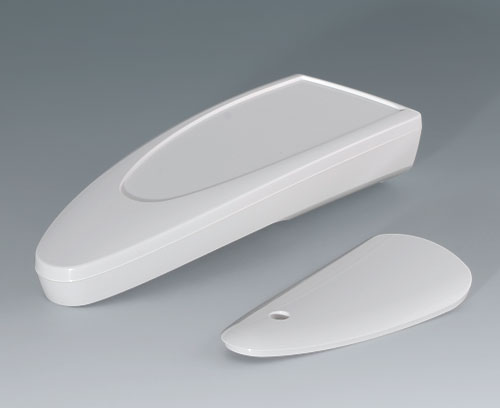

B2804017 STYLE-CASE L

B2804017

STYLE-CASE L Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing kit (accessory). Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AA batteries.

Supply Top and bottom part, battery compartment lid, assembly kit

Close

B2804017

STYLE-CASE L
product added to your basket
ASA (UL 94 HB)
traffic white RAL 9016
166x64x31mm
IP 65 opt., IP 40

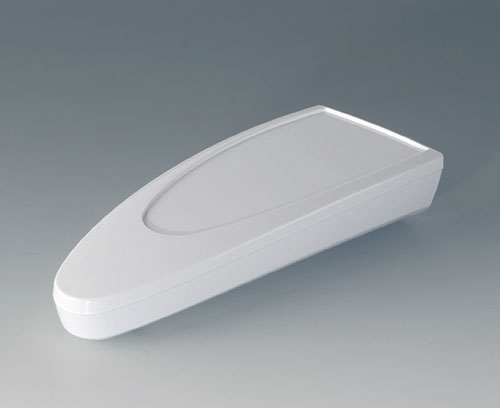

B2804027 STYLE-CASE L

B2804027

STYLE-CASE L Two-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Offers protection up to IP 65 with sealing (accessory). Protection class IP 40 without sealing. Attachment pillars for PCBs and components in the top and bottom parts.

Supply Top and bottom part, assembly kit

Close

B2804027

STYLE-CASE L
product added to your basket
ASA (UL 94 HB)
traffic white RAL 9016
166x64x31mm
IP 65 opt., IP 40
A0304031 Self-tapping screws 2.2 x 5 mm (PZ1)

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1)
product added to your basket
A0399T10 Torx T10 screwdriver

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

Close

A0399T10

Torx T10 screwdriver
product added to your basket
A9190020 Set of battery clips

A9190020

Set of battery clips For contacting 2 AAA batteries.

Supply 1 single contact "negative", 1 single contact "positive", 1 double contact "positive + negative"

Close

A9190020

Set of battery clips
product added to your basket
Steel
nickel-plated
A9199005 Strain relief

A9199005

Strain relief Frame for securing the cable on existing supports. Suitable for cable ø approx. 5-7 mm.

Supply 1 strain relief device, 2 screws

Close

A9199005

Strain relief
product added to your basket
PA 6
volcano

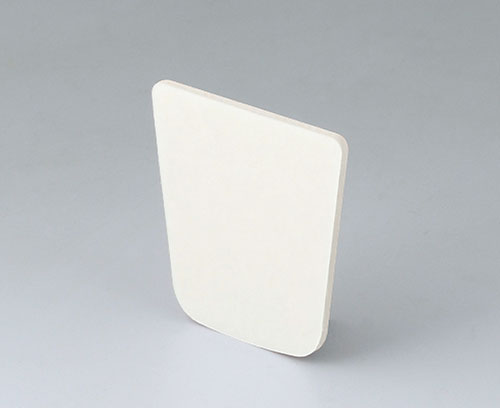

B2902031 Adhesive foil S

B2902031

Adhesive foil S For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply 1 piece

Close

B2902031

Adhesive foil S
product added to your basket

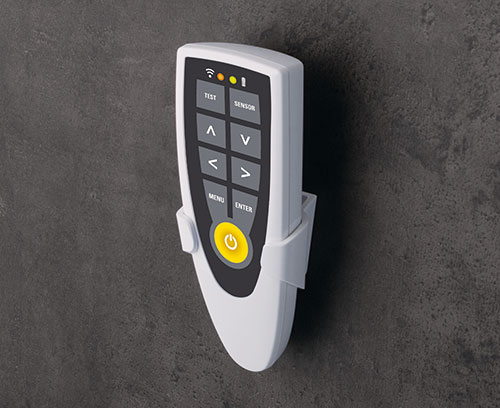

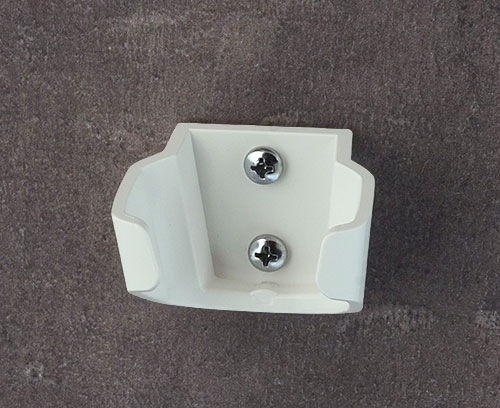

B2902037 Holder S

B2902037

Holder S Special holder for STYLE-CASE S for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2902031) is offered for surface that are not to be drilled.

Supply 1 holder

Close

B2902037

Holder S
product added to your basket
ASA (UL 94 HB)
traffic white RAL 9016

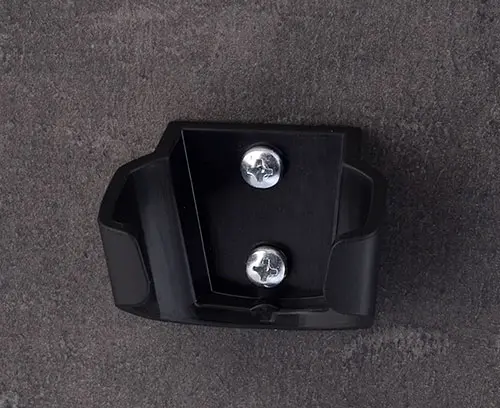

B2902039 Holder S

B2902039

Holder S Special holder for STYLE-CASE S for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2902031) is offered for surface that are not to be drilled.

Supply 1 holder

Close

B2902039

Holder S
product added to your basket
ASA (UL 94 HB)
black RAL 9005

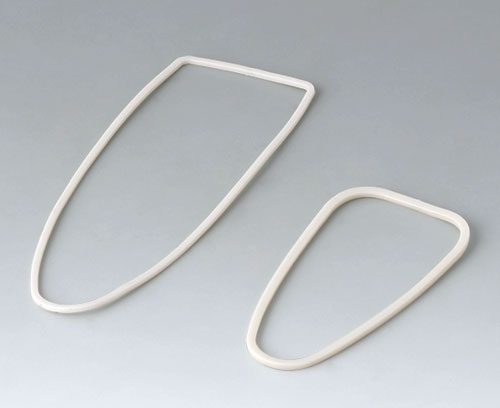

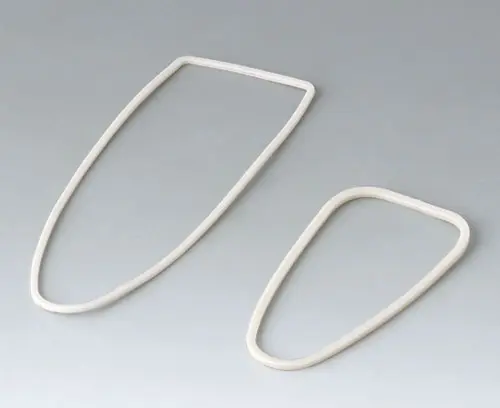

B2902111 Sealing kit S

B2902111

Sealing kit S Application: for increasing the protection class, of STYLE-CASE S.

Supply 2 sealings kit (enclosure, battery compartment)

Close

B2902111

Sealing kit S
product added to your basket
TPV 50A

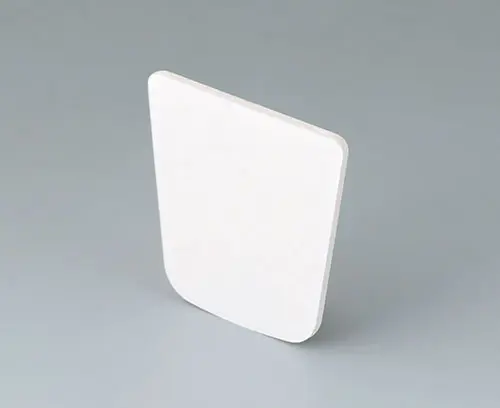

B2903031 Adhesive foil M

B2903031

Adhesive foil M For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply 1 piece

Close

B2903031

Adhesive foil M
product added to your basket

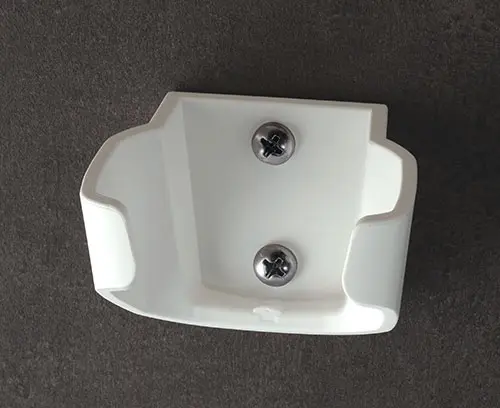

B2903037 Holder M

B2903037

Holder M Special holder for STYLE-CASE M for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2903031) is offered for surface that are not to be drilled.

Supply 1 holder

Close

B2903037

Holder M
product added to your basket
ASA (UL 94 HB)
traffic white RAL 9016

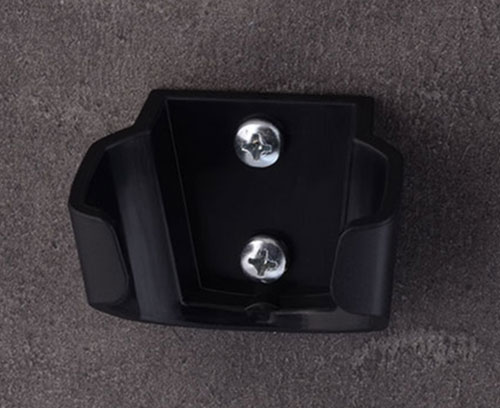

B2903039 Holder M

B2903039

Holder M Special holder for STYLE-CASE M for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2903031) is offered for surface that are not to be drilled.

Supply 1 holder

Close

B2903039

Holder M
product added to your basket
ASA (UL 94 HB)
black RAL 9005

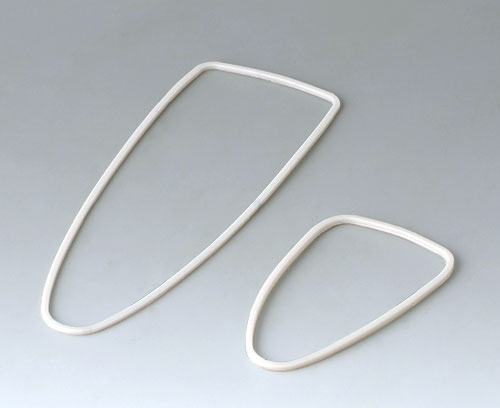

B2903111 Sealing kit M

B2903111

Sealing kit M

Application: for increasing the protection class, of STYLE-CASE M.

Supply 2 sealings kit (enclosure, battery compartment)

Close

B2903111

Sealing kit M
product added to your basket
TPV 50A

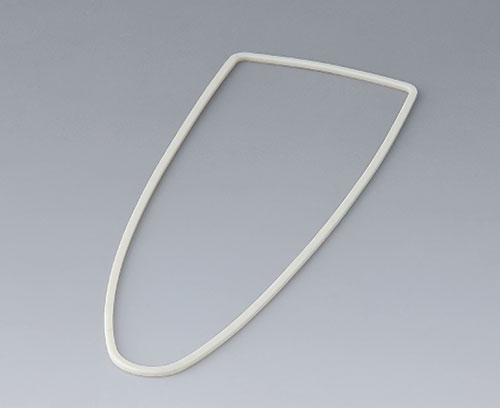

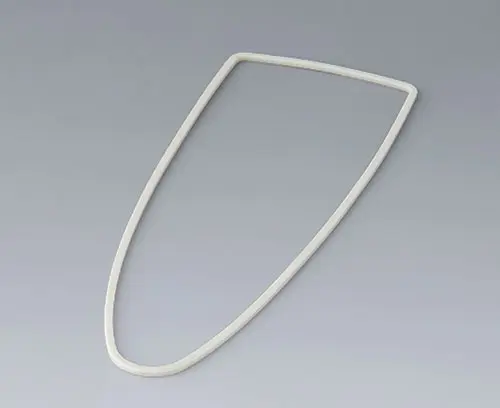

B2904011 Sealing L

B2904011

Sealing L Application: for increasing the protection class, of STYLE-CASE L.

Supply 1 sealing

Close

B2904011

Sealing L
product added to your basket
TPV 50A

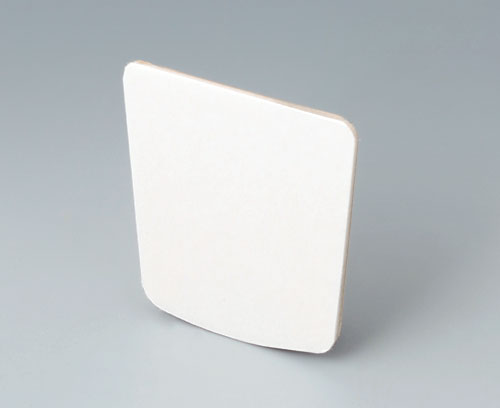

B2904031 Adhesive foil L

B2904031

Adhesive foil L For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply 1 piece

Close

B2904031

Adhesive foil L
product added to your basket

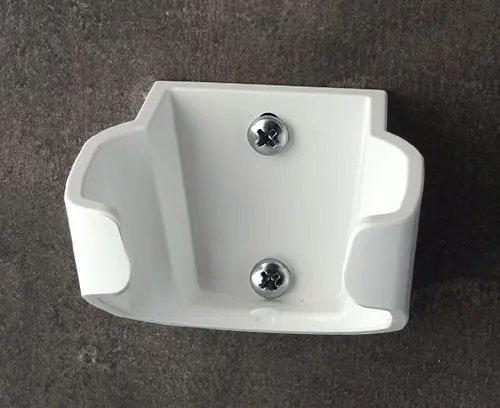

B2904037 Holder L

B2904037

Holder L Special holder for STYLE-CASE L for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2904031) is offered for surface that are not to be drilled.

Supply 1 holder

Close

B2904037

Holder L
product added to your basket
ASA (UL 94 HB)
traffic white RAL 9016

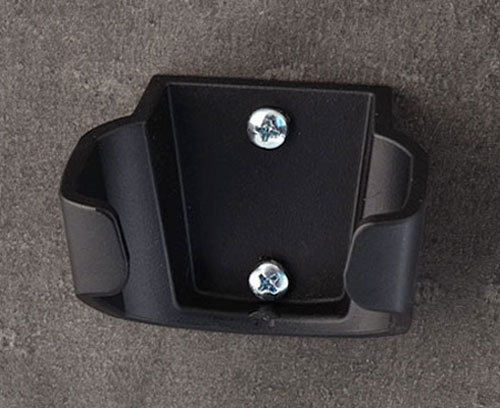

B2904039 Holder L

B2904039

Holder L Special holder for STYLE-CASE L for rational and secure storage. Thanks to the two preformed elongated holes, the holder can be screwed in position and aligned quickly and easily. An adhesive foil (B2904031) is offered for surface that are not to be drilled.

Supply 1 holder

Close

B2904039

Holder L
product added to your basket
ASA (UL 94 HB)
black RAL 9005

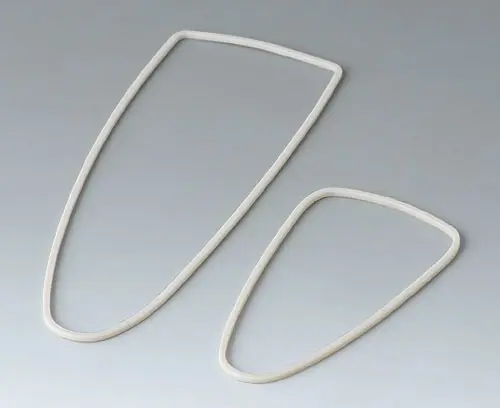

B2904111 Sealing kit L

B2904111

Sealing kit L Application: for increasing the protection class, of STYLE-CASE L.

Supply 2 sealings kit (enclosure, battery compartment)

Close

B2904111

Sealing kit L
product added to your basket
TPV 50A

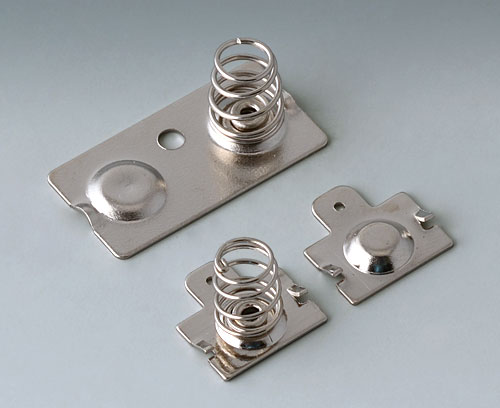

B2904210 Set of battery clips

B2904210

Set of battery clips For contacting 2 AA batteries.

Supply 1 single contact "negative", 1 single contact "positive", 1 double contact "positive + negative"

Close

B2904210

Set of battery clips
product added to your basket
Steel
nickel-plated

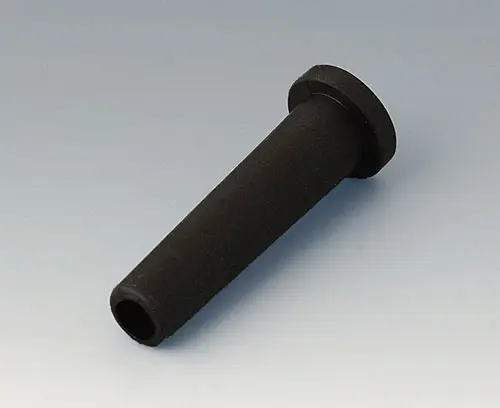

C2353849 Flexible cable grommet Ø 5,3

C2353849

Flexible cable grommet Ø 5,3

Flexible cable grommet to protect the cable connection, for universal use.

Please note: recommended for STYLE-CASE L without battery compartment. Subsequent machining of the bottom part of the enclosure required.

Supply 1 flexible cable grommet

Close

C2353849

Flexible cable grommet Ø 5,3
product added to your basket
black

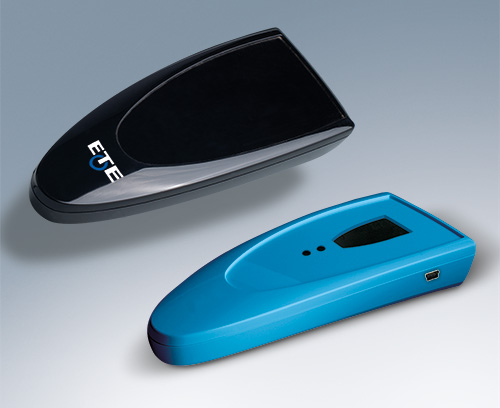

Customising options for Style-Case

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
