B4518101 Wall suspension element 180
Scroll

B4518101

Wall suspension element 180

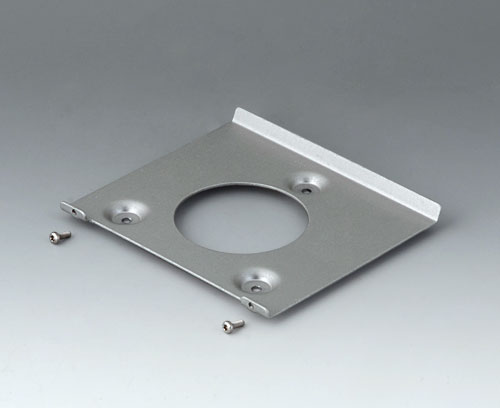

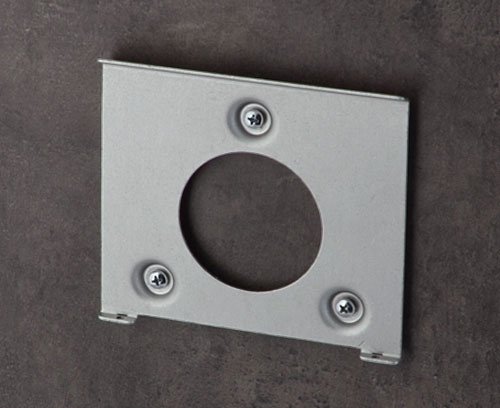

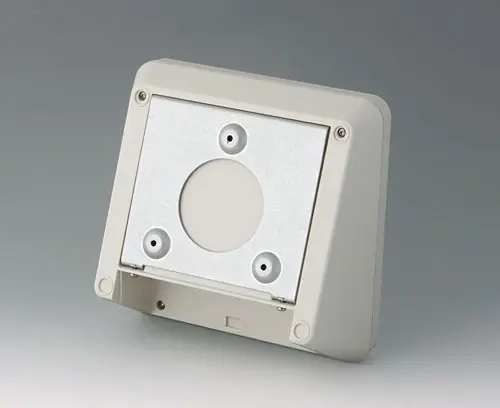

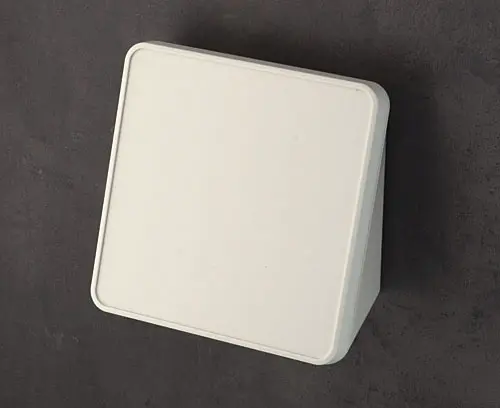

Holder for secure, flush mounting on the wall. The enclosure is screwed to the wall suspension element in the recessed interface area. Advantage: hidden mounting with no visible fixings.

Supply

1 wall suspension element and 2 screws

Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for B4518101

Please select the product details you would like to include in the PDF.

Close
  • To be used for
B4418107 PROTEC 180, Vers. I

B4418107

PROTEC 180, Vers. I Modern two piece plastic enclosure with an ergonomically inclined operating panel. Fastening pillars for PCBs and components in the top and bottom parts. Recessed interface area. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply Top and bottom parts, assembly kit including 4 self-adhesive rubber feet

Close

B4418107

PROTEC 180, Vers. I
product added to your basket
ASA+PC (UL 94 V-0)
off-white RAL 9002
180x180x92mm
IP 65 opt.
B4418207 PROTEC 180, Vers. II

B4418207

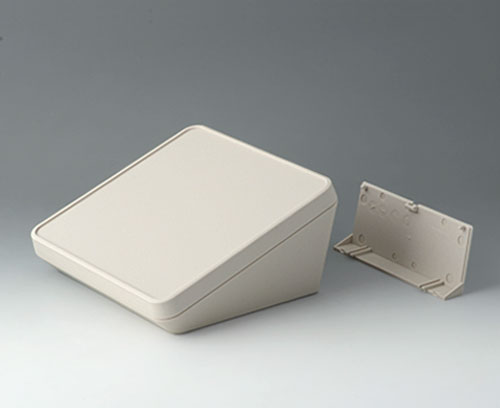

PROTEC 180, Vers. II Modern three piece plastic enclosure with an ergonomically inclined operating panel. The snap-on cover included in the supply makes it possible to close the deep recessed interface area at the rear both visually and/or to install additional electronics in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply Top and bottom parts, snap-on cover, assembly kit including 4 self-adhesive rubber feet

Close

B4418207

PROTEC 180, Vers. II
product added to your basket
ASA+PC (UL 94 V-0)
off-white RAL 9002
180x180x92mm
IP 65 opt.
B4418307 PROTEC 180, Vers. III

B4418307

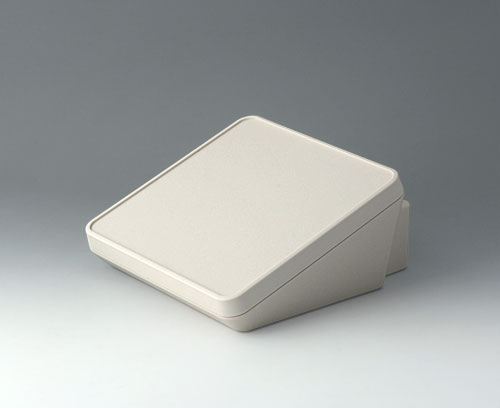

PROTEC 180, Vers. III Modern three piece plastic enclosure with an ergonomically inclined operating panel. The deep cover included in the supply provides additional space in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply Top and bottom parts, deep cover, assembly kit including 4 self-adhesive rubber feet

Close

B4418307

PROTEC 180, Vers. III
product added to your basket
ASA+PC (UL 94 V-0)
off-white RAL 9002
180x201x92mm
IP 65 opt.
  • Technical Data
  • Purchasing Data
Material
Aluminium
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
52 g
Customs tariff number
(OKW product)
76069200
Country of manufacture
Germany
