A9108223 Front / rear panel V, O 155

A9108223

Front / rear panel V, O 155

Front panel for SHELL-TYPE CASE V and O. For case A940844.

Supply

1 front panel

  • To be used for
  • View Customising Options

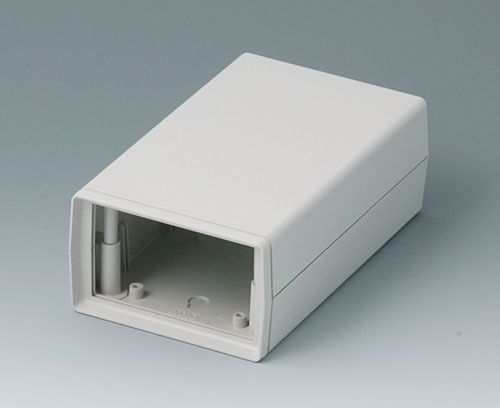

A9408440 SHELL-TYPE CASES O 155, Vers. I

A9408440

SHELL-TYPE CASES O 155, Vers. I Two-part plastic case with open front and open rear. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Close

A9408440

SHELL-TYPE CASES O 155, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
95x155x57mm
A9408443 SHELL-TYPE CASES V 155, Vers. I

A9408443

SHELL-TYPE CASES V 155, Vers. I Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Close

A9408443

SHELL-TYPE CASES V 155, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
95x158x57mm

Customising options for A9108223

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Purchasing Data
Colour
red transparent
Width
81.9 mm
Height
47.6 mm
Thickness
1 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
6 g
Customs tariff number
(OKW product)
39205100
Country of manufacture
Germany
