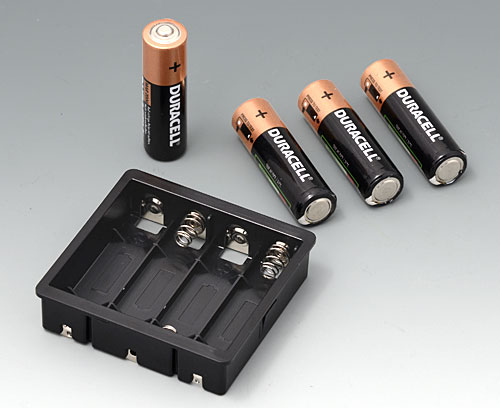

EZ050609 Battery compartment, 4 x AA
Scroll

EZ050609

Battery compartment, 4 x AA

For 4 x 1.5 V mignon-cells (AA). To install a PCB above the battery compartment in the bottom part, the extender (EZ031209) is required.

Supply

1 battery compartment, set of battery clips

Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for EZ050609

Please select the product details you would like to include in the PDF.

Close
  • To be used for
  • View Customising Options
EE183059 SYNERGY E180

EE183059

SYNERGY E180 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with good UV resistance and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Close

EE183059

SYNERGY E180
product added to your basket
Aluminium AlMgSi 0.5
matt anodised
180x90x40mm
IP 40
EE186059 SYNERGY E180

EE186059

SYNERGY E180 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with good UV resistance and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Close

EE186059

SYNERGY E180
product added to your basket
Aluminium AlMgSi 0.5
matt anodised
180x90x70mm
IP 40
EE189059 SYNERGY E180

EE189059

SYNERGY E180 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with good UV resistance and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Close

EE189059

SYNERGY E180
product added to your basket
Aluminium AlMgSi 0.5
matt anodised
180x90x100mm
IP 40
EE203059 SYNERGY E200

EE203059

SYNERGY E200 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with good UV resistance and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Close

EE203059

SYNERGY E200
product added to your basket
Aluminium AlMgSi 0.5
matt anodised
200x100x40mm
IP 40
EE206059 SYNERGY E200

EE206059

SYNERGY E200 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with high UV protection and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Close

EE206059

SYNERGY E200
product added to your basket
Aluminium AlMgSi 0.5
matt anodised
200x100x70mm
IP 40
EE209059 SYNERGY E200

EE209059

SYNERGY E200 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with high UV protection and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Close

EE209059

SYNERGY E200
product added to your basket
Aluminium AlMgSi 0.5
matt anodised
200x100x100mm
IP 40
EO183059 SYNERGY O180

EO183059

SYNERGY O180 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with high UV protection and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Close

EO183059

SYNERGY O180
product added to your basket
Aluminium AlMgSi 0.5
matt anodised
180x90x40mm
IP 40
EO186059 SYNERGY O180

EO186059

SYNERGY O180 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with high UV protection and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Close

EO186059

SYNERGY O180
product added to your basket
Aluminium AlMgSi 0.5
matt anodised
180x90x70mm
IP 40
EO189059 SYNERGY O180

EO189059

SYNERGY O180 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with high UV protection and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Close

EO189059

SYNERGY O180
product added to your basket
Aluminium AlMgSi 0.5
matt anodised
180x90x100mm
IP 40
EO203059 SYNERGY O200

EO203059

SYNERGY O200 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with high UV protection and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit.

Close

EO203059

SYNERGY O200
product added to your basket
Aluminium AlMgSi 0.5
matt anodised
200x100x40mm
IP 40
EO206059 SYNERGY O200

EO206059

SYNERGY O200 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with high UV protection and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Close

EO206059

SYNERGY O200
product added to your basket
Aluminium AlMgSi 0.5
matt anodised
200x100x70mm
IP 40
EO209059 SYNERGY O200

EO209059

SYNERGY O200 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with high UV protection and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Close

EO209059

SYNERGY O200
product added to your basket
Aluminium AlMgSi 0.5
matt anodised
200x100x100mm
IP 40
ER143059 SYNERGY R140

ER143059

SYNERGY R140 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with high UV protection and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Close

ER143059

SYNERGY R140
product added to your basket
Aluminium AlMgSi 0.5
matt anodised
⌀140x40mm
IP 40
ER146059 SYNERGY R140

ER146059

SYNERGY R140 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with high UV protection and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Close

ER146059

SYNERGY R140
product added to your basket
Aluminium AlMgSi 0.5
matt anodised
⌀140x70mm
IP 40
ER149059 SYNERGY R140

ER149059

SYNERGY R140 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with high UV protection and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Close

ER149059

SYNERGY R140
product added to your basket
Aluminium AlMgSi 0.5
matt anodised
⌀140x100mm
IP 40
ES103059 SYNERGY S100

ES103059

SYNERGY S100 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with good UV resistance and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Close

ES103059

SYNERGY S100
product added to your basket
Aluminium AlMgSi 0.5
matt anodised
100x100x40mm
IP 40
ES106059 SYNERGY S100

ES106059

SYNERGY S100 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with good UV resistance and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Close

ES106059

SYNERGY S100
product added to your basket
Aluminium AlMgSi 0.5
matt anodised
100x100x70mm
IP 40
ES109059 SYNERGY S100

ES109059

SYNERGY S100 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with good UV resistance and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Close

ES109059

SYNERGY S100
product added to your basket
Aluminium AlMgSi 0.5
matt anodised
100x100x100mm
IP 40
ES123059 SYNERGY S120

ES123059

SYNERGY S120 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with good UV resistance and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Close

ES123059

SYNERGY S120
product added to your basket
Aluminium AlMgSi 0.5
matt anodised
120x120x40mm
IP 40
ES126059 SYNERGY S120

ES126059

SYNERGY S120 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with good UV resistance and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Close

ES126059

SYNERGY S120
product added to your basket
Aluminium AlMgSi 0.5
matt anodised
120x120x70mm
IP 40
ES129059 SYNERGY S120

ES129059

SYNERGY S120 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with good UV resistance and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Close

ES129059

SYNERGY S120
product added to your basket
Aluminium AlMgSi 0.5
matt anodised
120x120x100mm
IP 40
ES143059 SYNERGY S140

ES143059

SYNERGY S140 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with good UV resistance and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Close

ES143059

SYNERGY S140
product added to your basket
Aluminium AlMgSi 0.5
matt anodised
140x140x40mm
IP 40
ES146059 SYNERGY S140

ES146059

SYNERGY S140 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with good UV resistance and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Close

ES146059

SYNERGY S140
product added to your basket
Aluminium AlMgSi 0.5
matt anodised
140x140x70mm
IP 40
ES149059 SYNERGY S140

ES149059

SYNERGY S140 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with good UV resistance and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Close

ES149059

SYNERGY S140
product added to your basket
Aluminium AlMgSi 0.5
matt anodised
140x140x100mm
IP 40

Customising options for EZ050609

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Purchasing Data
Material
ASA+PC (UL 94 V-0)
Plastic parts
Colour
black RAL 9005
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
21 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
