B1350048 Wall suspension elements

B1350048

Wall suspension elements

Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply

1 wall suspension element, 1 adapter 50 x 100 mm, assembly kit

  • To be used for
  • View Customising Options

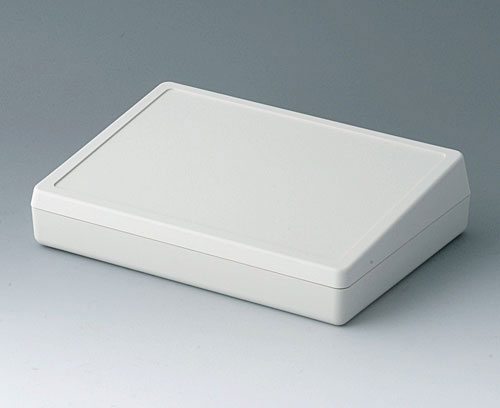

A0519007 DESK CASE 190

A0519007

DESK CASE 190 Two-part case with sloped operation area recessed 1.0 mm. Screw pillars in the base part and guide ridges for horizontal and vertical mounting of PCBs.

Version With closed top part

Supply 1 top and base part, assembly kit

Close

A0519007

DESK CASE 190
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
190x138x47mm
A0519009 DESK CASE 190

A0519009

DESK CASE 190 Two-part case with sloped operation area recessed 1.0 mm. Screw pillars in the base part and guide ridges for horizontal and vertical mounting of PCBs.

Version With closed top part

Supply 1 top and base part, assembly kit

Close

A0519009

DESK CASE 190
product added to your basket
ABS (UL 94 HB)
black RAL 9005
190x138x47mm

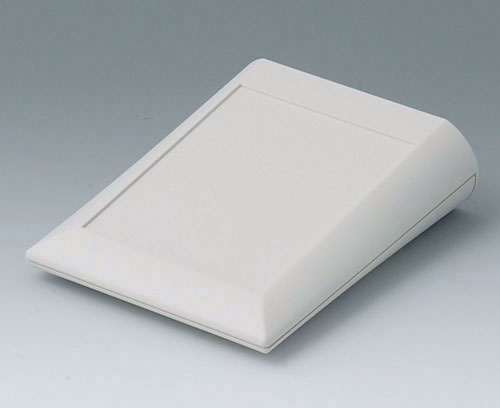

A0612007 COMTEC 120 F, Vers. I

A0612007

COMTEC 120 F, Vers. I Two-part case in flat construction for table top and wall-mounted applications. Ergonomically operating area sloped by 10°, 1.2 mm recessed for protecting membrane keyboards. Fixing towers in bottom and top part. Big area for interfaces at the top part's rear.

Version Without battery compartment

Supply 1 top and bottom part, assembly kit

Close

A0612007

COMTEC 120 F, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
120x150x42.8mm
IP 40

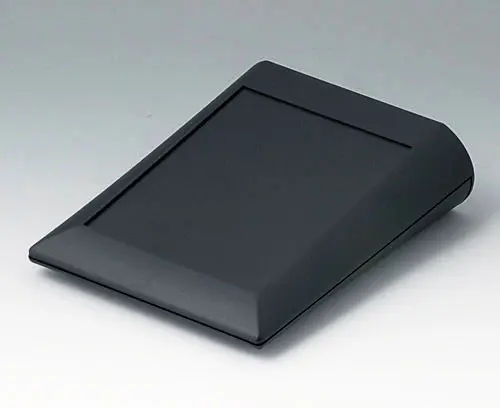

A0612009 COMTEC 120 F, Vers. I

A0612009

COMTEC 120 F, Vers. I Two-part case in flat construction for table top and wall mounted applications. Ergonomically operating area sloped by 10°, 1.2 mm recessed for protecting membrane keyboards. Fixing towers in bottom and top part. Big area for interfaces at the top part's rear.

Version Without battery compartment

Supply 1 top and bottom part, assembly kit

Close

A0612009

COMTEC 120 F, Vers. I
product added to your basket
ABS (UL 94 HB)
black RAL 9005
120x150x42.8mm
IP 40

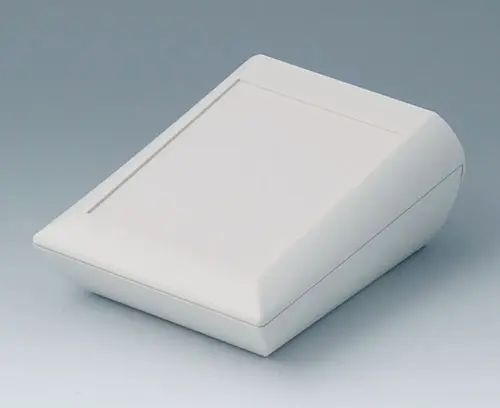

A0612107 COMTEC 120 H, Vers. I

A0612107

COMTEC 120 H, Vers. I Two-part case in high construction for table top and wall mounted applications. Ergonomically operating area sloped by 10°, 1.2 mm recessed for protecting membrane keyboards. Fixing towers in bottom and top part. Big area for interfaces at the top part's rear.

Version Without battery compartment

Supply 1 top and bottom part, assembly kit

Close

A0612107

COMTEC 120 H, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
120x150x62.8mm
IP 40

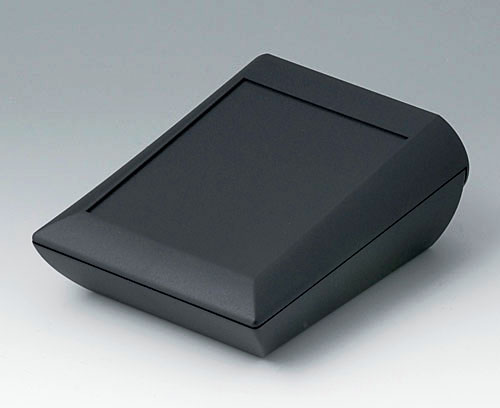

A0612109 COMTEC 120 H, Vers. I

A0612109

COMTEC 120 H, Vers. I Two-part case in high construction for table top and wall mounted applications. Ergonomically operating area sloped by 10°, 1.2 mm recessed for protecting membrane keyboards. Fixing towers in bottom and top part. Big area for interfaces at the top part's rear.

Version Without battery compartment

Supply 1 top and bottom part, assembly kit

Close

A0612109

COMTEC 120 H, Vers. I
product added to your basket
ABS (UL 94 HB)
black RAL 9005
120x150x62.8mm
IP 40
A9020065 FLAT-PACK CASES 120 N, Vers. I

A9020065

FLAT-PACK CASES 120 N, Vers. I Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

Close

A9020065

FLAT-PACK CASES 120 N, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
120x65x40mm
IP 40

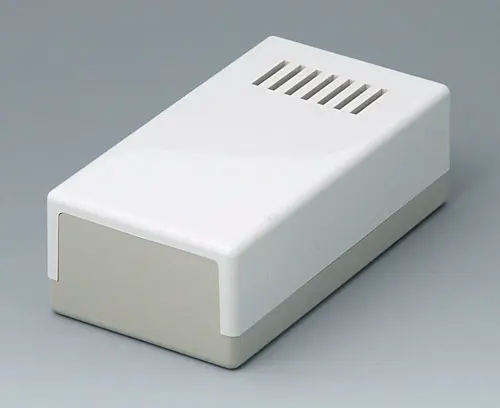

A9020265 FLAT-PACK CASE 120 S

A9020265

FLAT-PACK CASE 120 S Two-piece case. Top part with ventilation slots and open side base. Fastenings pillars for PCB mounting.

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

Close

A9020265

FLAT-PACK CASE 120 S
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
120x65x40mm

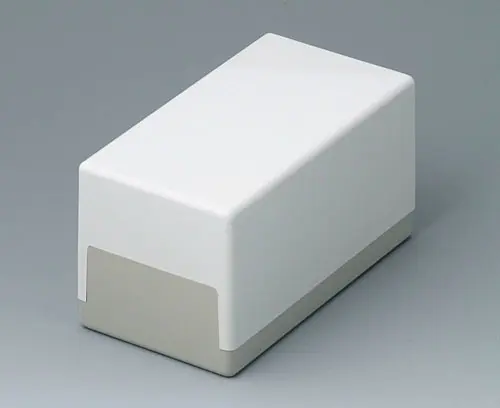

A9021065 FLAT-PACK CASE 120 H, Vers. I

A9021065

FLAT-PACK CASE 120 H, Vers. I Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

Close

A9021065

FLAT-PACK CASE 120 H, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
120x65x65mm
IP 40

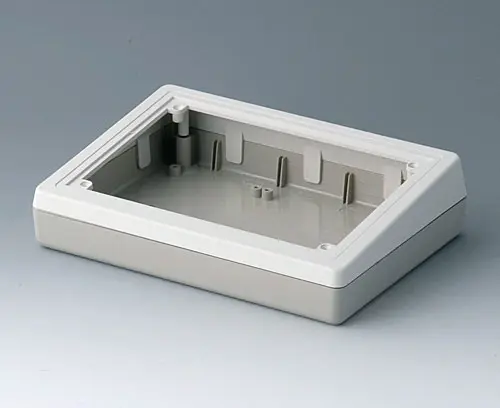

A9086265 DESK CASE 190 F

A9086265

DESK CASE 190 F Two-part case with sloped operation area recessed 1.5 mm. Screw pillars in the base part and guide ridges for horizontal and vertical mounting of PCBs.

Version Top prepared for front panel mounting, flat base part

Supply 1 top and base part, assembly kit

Close

A9086265

DESK CASE 190 F
product added to your basket
ABS (UL 94 HB)
pebble grey RAL 7032
190x138x47mm

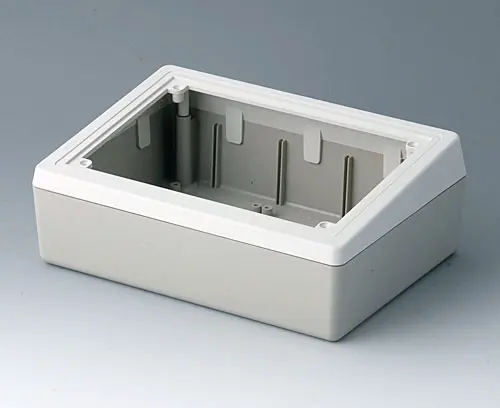

A9086365 DESK CASE 190 H

A9086365

DESK CASE 190 H Two-part case with sloped operation area recessed 1.5 mm. Screw pillars in the base part and guide ridges for horizontal and vertical mounting of PCBs.

Version Top for front panel mounting, higher base part

Supply 1 top and base part, assembly kit

Close

A9086365

DESK CASE 190 H
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
190x138x70mm

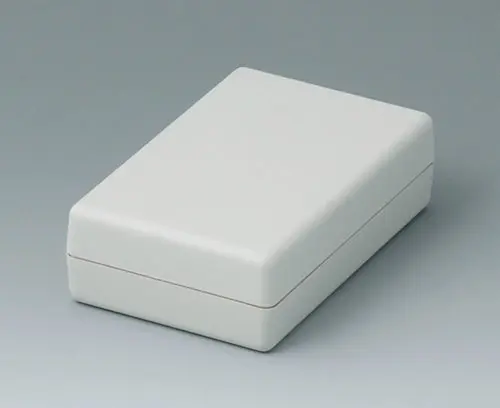

A9406331 SHELL-TYPE CASES G 110, Vers. I

A9406331

SHELL-TYPE CASES G 110, Vers. I Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Close

A9406331

SHELL-TYPE CASES G 110, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
72x114x33mm
IP 65 opt.

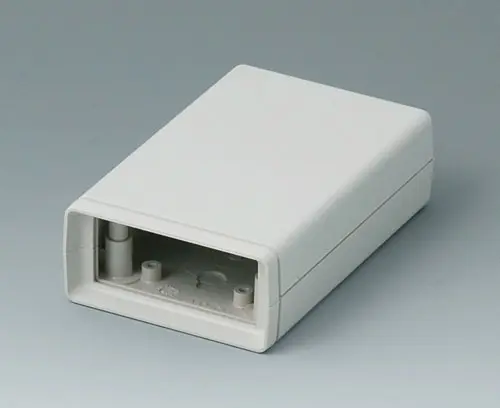

A9406333 SHELL-TYPE CASES V 110, Vers. I

A9406333

SHELL-TYPE CASES V 110, Vers. I Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Close

A9406333

SHELL-TYPE CASES V 110, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
72x114x33mm

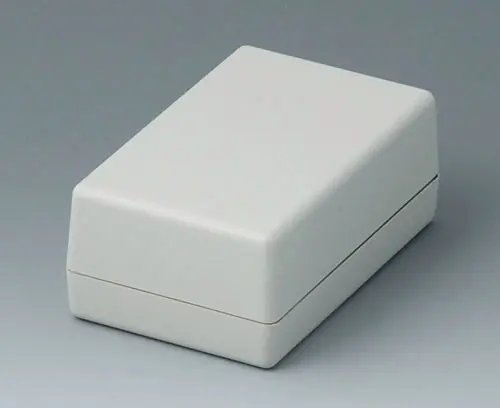

A9406341 SHELL-TYPE CASES G 110, Vers. I

A9406341

SHELL-TYPE CASES G 110, Vers. I Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Close

A9406341

SHELL-TYPE CASES G 110, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
72x114x45mm
IP 65 opt.

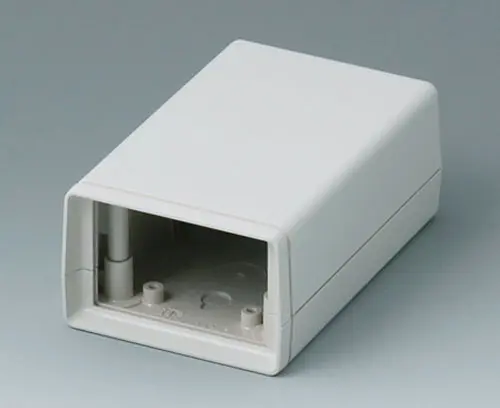

A9406343 SHELL-TYPE CASES V 110, Vers. I

A9406343

SHELL-TYPE CASES V 110, Vers. I Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Close

A9406343

SHELL-TYPE CASES V 110, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
72x114x45mm

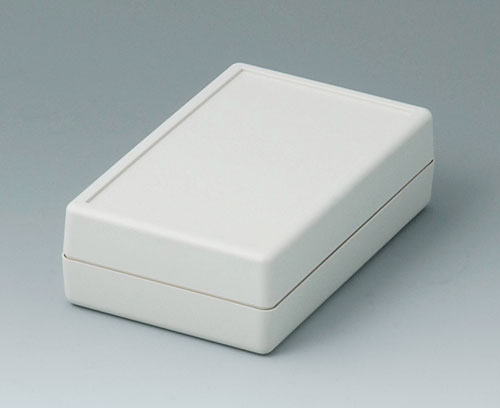

A9406351 SHELL-TYPE CASES G 110, Vers. I

A9406351

SHELL-TYPE CASES G 110, Vers. I Two-part plastic case with closed front and rear. Top view with recessed area. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Close

A9406351

SHELL-TYPE CASES G 110, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
72x114x33.5mm
IP 65 opt.

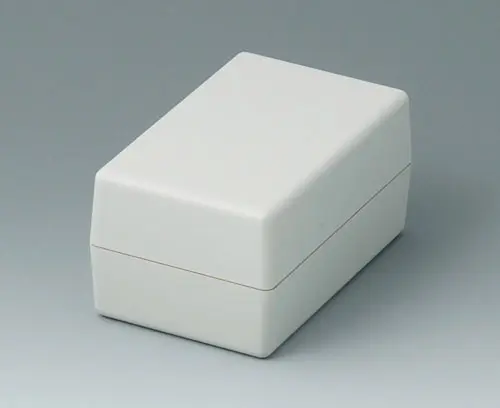

A9406441 SHELL-TYPE CASES G 110, Vers. I

A9406441

SHELL-TYPE CASES G 110, Vers. I Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Close

A9406441

SHELL-TYPE CASES G 110, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
72x114x57mm
IP 65 opt.

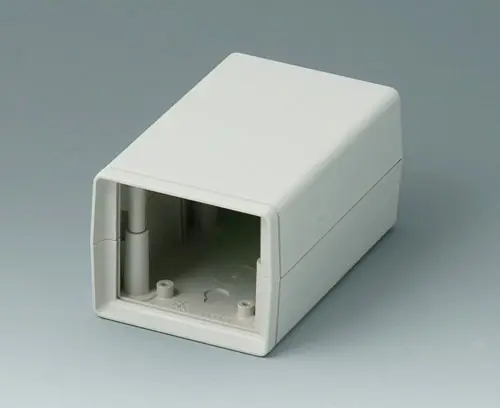

A9406443 SHELL-TYPE CASES V 110, Vers. I

A9406443

SHELL-TYPE CASES V 110, Vers. I Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Close

A9406443

SHELL-TYPE CASES V 110, Vers. I
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
72x114x57mm

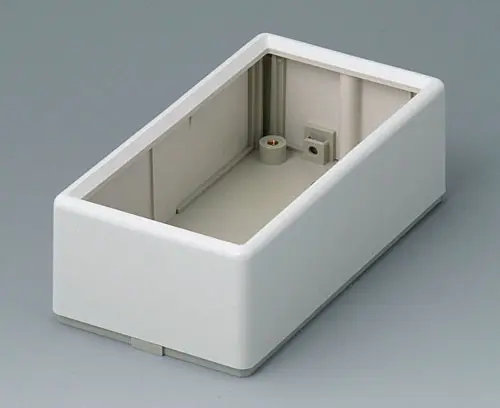

A9520165 FLAT-PACK CASE 120 A

A9520165

FLAT-PACK CASE 120 A Two-piece case. The front pane,l see accessory A9195201, rests upon four spring posts and is held without screws by the case frame. Fastenings pillars for PCB mounting.

Supply 1 top and base part, assembly kit

Close

A9520165

FLAT-PACK CASE 120 A
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
120x65x40mm
IP 40

Customising options for B1350048

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
ABS (UL 94 HB)
Adapter
PC+ABS (UL 94 V-0)
Wall suspension element
Colour
Wall suspension element pebble grey RAL 7032,
Adapter off-white RAL 9002
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
15 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
