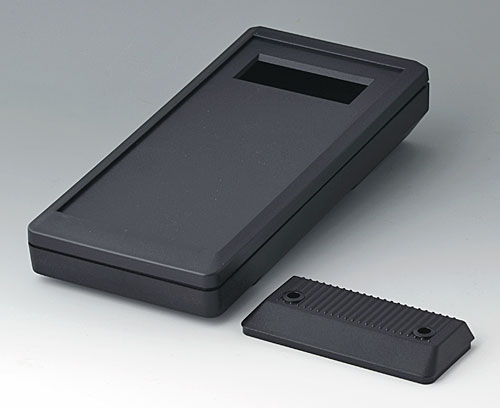

A9075209 DATEC-MOBIL-BOX L, Vers. II
Scroll

A9075209

DATEC-MOBIL-BOX L, Vers. II

Hand-held box with wide range of applications. Prepared for mounting PCBs of Eurocard size. Large control area for membrane keyboards and controls. Battery compartment accessible from the outside, for 4 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Sealing for IP 65 as accessory.

Version

Top with display cutout for LCD modules of 20 characters x 4 lines

Supply

Case-top and base, battery compartment lid, assembly kit

2D PDF Drawing
3D PDF View
Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Generate my PDF Datasheet

Generate Your PDF Datasheet for A9075209

Please select the product details you would like to include in the PDF.

Close
  • Components/Accessories
  • View Customising Options

Accessory "battery"

A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

Close

A9160003

Plug-in contact, 1 x 9 V (PP3)
product added to your basket
A9161002 Set of battery clips, 2 x 9 V or 4 x AA

A9161002

Set of battery clips, 2 x 9 V or 4 x AA For contacting the batteries 2 x 9 V.
Note application DATEC-MOBIL-BOX L with battery compartment: only for this enclosure 2 x 9 V or 4 x AA is possible.

Supply 4 single contacts

Close

A9161002

Set of battery clips, 2 x 9 V or 4 x AA
product added to your basket
Steel
tin-plated
A9190012 Set of battery clips, 4 x AA

A9190012

Set of battery clips, 4 x AA For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.

Supply 2 single contact positive, 2 single contact negative

Close

A9190012

Set of battery clips, 4 x AA
product added to your basket
Steel
nickel-plated

Accessory "protection"

A9175001 Sealing kit L

A9175001

Sealing kit L Application: for increasing the protection class, of DATEC-MOBIL-BOX L.

Supply 2 sealings, 4 sealings rings

Close

A9175001

Sealing kit L
product added to your basket
A9175009 Display window L, border black

A9175009

Display window L, border black The display window protects the installed display and achieves protection class within the display area. The printing matches with the visible area of the display cutout.

Supply 1 display window, 1 adhesive foil

Close

A9175009

Display window L, border black
product added to your basket
Acrylic glass
transparent
A9175108 Protector L

A9175108

Protector L Special protector for DATEC-MOBIL-BOX L. Absorbs shocks and so protects the electronics in the case. Ideal also as a surface protector for peripheral equipment, appliances etc. Simple assembly through the use of a special elastomer.

Supply 1 protector

Close

A9175108

Protector L
product added to your basket
SBS (TPE)
volcano

Accessory "wall/holder"

A9226129 Wall suspension element

A9226129

Wall suspension element Wall suspension element for DATEC-MOBIL-BOX L. Two clasps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

Close

A9226129

Wall suspension element
product added to your basket
ABS (UL 94 HB)
black RAL 9005

Accessory "screws"

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
product added to your basket
A0308031 Self-tapping screws 3 x 8 mm (PZ1)

A0308031

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0308031

Self-tapping screws 3 x 8 mm (PZ1)
product added to your basket
A0308132 Self-tapping screw 3 x 8 mm (T10)

A0308132

Self-tapping screw 3 x 8 mm (T10) Self-tapping screw with T10 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Close

A0308132

Self-tapping screw 3 x 8 mm (T10)
product added to your basket
Stainless steel

Accessory

A9250909 Tilt foot bar

A9250909

Tilt foot bar Special for DATEC-MOBIL-BOX M/S (preformend centerings are already considered). Facilitates ergonomical reading angles (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a beter grip.

Supply 1 tilt foot bar, assembly kit

Close

A9250909

Tilt foot bar
product added to your basket
ABS (UL 94 HB)
black RAL 9005

Customising options for A9075209

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
ABS (UL 94 HB)
Protection class
IP 65 opt.
Necessary accessories: sealing kit, display window (set with adhesive foil)
Colour
black RAL 9005
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
252 mm
Width
121 mm
Height
50 mm
PCB length, base
190 mm
PCB width, base
108 mm
PCB length, top
241 mm
PCB width, top
110 mm
Display length, base
74 mm
Display width, base
24 mm
Keypad length
218.7 mm
Keypad width
100.7 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
308 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
